Terraform Commands

terraform init
terraform init -migrate-state
terraform init -reconfigure
terraform plan
terraform plan -destroy
terraform plan -out=demopath
terraform apply demopath
terraform fmt
terraform apply -refresh-only -auto-approve			-> Refresh fetch real remote objects & only modify state file
terraform apply										-> Terraform will match current state to desired state
terraform apply -auto-approve
terraform destroy									-> Delete All Resources in One Folder
terraform destroy -target aws_instance.AmazonAMI	-> resource type.local resource name
terraform apply -var-file="custom.tfvars"			-> Explicitly Run Custom tfvars
terraform validate									-> Validating syntax error in terrafom configuration files
terraform apply -replace="aws_instance.myec2		-> Recreating the resource
export TF_LOG_PATH=/tmp/crash.log
export TF_LOG=TRACE
terraform force-unlock [options] LOCK_ID

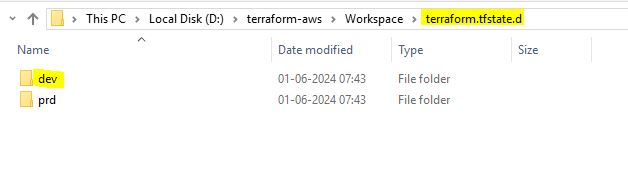

terraform workspace show
terraform workspace list
terraform workspace new dev
terraform workspace select dev
terraform state list

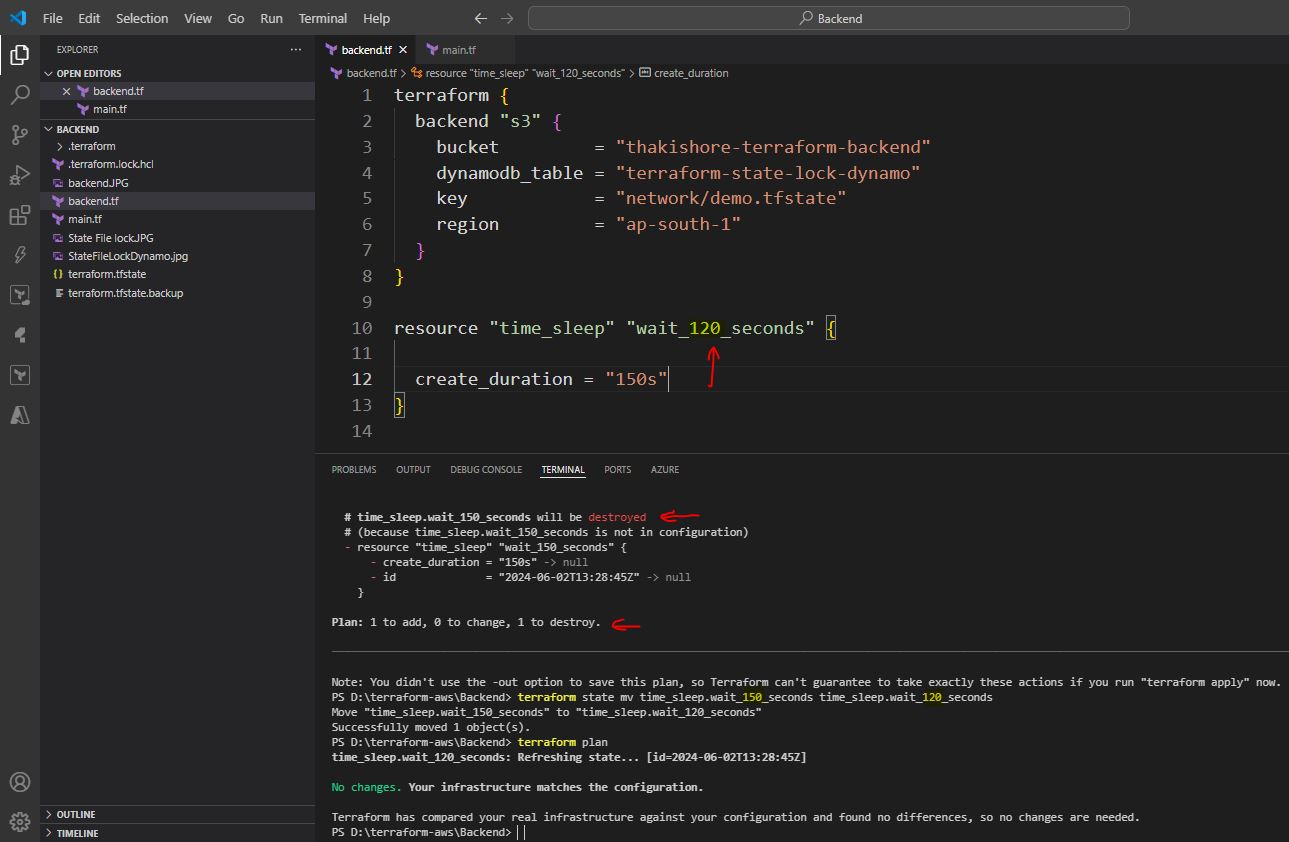

terraform state mv
terraform state pull
terraform state rm
terraform state show
terraform import aws_vpc.Terraform-VPC vpc-01b001b6d28e8fe52
terraform plan -generate-config-out=generated.tf
terraform plan -generate-config-out=mysg.tf -chdir D:\AWS Triad & Terraform\import

Comment

#				-> Single line comment
//				-> Alternate to #
/* and */		-> Multi line comment

Terraform State

Terraform State - terraform.tfstate -> Terraform State File has all Rources Configurations

Desired State - Resource Configurations in Main Terraform File
Current State - Present Resource Configurations in AWS

Terraform Desired state will replace AWS Current State AWS Console Manual Changes will be replced
Condition Only Main Terraform File Resource configurations will be considered to change not Terraform State File Configurations(.tfstate)

Dependancy Lock file

.terraform.lock.hcl Dependancy Lock file: to lock in specific version
terraform init -upgrade Extend lock version

Create AWS Instance

provider "aws" {
  region     = "ap-south-1"
  access_key = "xxxxxxxxxxxxxxxxx"
  secret_key = "xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx"
}
resource "aws_instance" "AmazonAMI" {
  ami           = "ami-0cc9838aa7ab1dce7"
  instance_type = "t3.micro"
  tags = {
    Name = "AmazonAMIInstance"
  }
  depends_on = [aws_eip.lb]

}
resource type aws_instance
local resource name AmazonAMI
https://registry.terraform.io/providers/hashicorp/aws/latest/docs/resources/instance

Create AWS RDS Instance

provider "aws" {
  region     = "ap-south-1"
}
resource "aws_db_instance" "default" {
  allocated_storage    = 5
  storage_type         = "gp2"
  engine               = "mysql"
  engine_version       = "5.7"
  instance_class       = "db.t2.micro"
  db_name              = "mydb"
  username             = "foo"
  password             = "${file("../rds_pass.txt")}"
  parameter_group_name = "default.mysql5.7"
  skip_final_snapshot = "true"
}

Create Security Group and Elastic IP

provider "aws" {
  region = "ap-south-1"
}

resource "aws_security_group" "allow_http" {
  name        = "terraform-SG"
  description = "Managed from Terraform"
}

resource "aws_vpc_security_group_ingress_rule" "allow_tls_ipv4" {
  security_group_id = aws_security_group.allow_tls.id
  cidr_ipv4         = "0.0.0.0/0"
  from_port         = 80
  ip_protocol       = "tcp"
  to_port           = 80
}

resource "aws_vpc_security_group_egress_rule" "allow_all_traffic_ipv4" {
  security_group_id = aws_security_group.allow_tls.id
  cidr_ipv4         = "0.0.0.0/0"
  ip_protocol       = "-1" # semantically equivalent to all ports
}

resource "aws_eip" "lb" {
  domain = "vpc"
}

Attributes, Cross Resource Attribute References & String Interpolation

provider "aws" {
  region = "ap-south-1"
}

resource "aws_eip" "lb" {
  domain   = "vpc"
}

resource "aws_security_group" "example" {
  name        = "attribute-sg"
}

resource "aws_vpc_security_group_ingress_rule" "example" {
  security_group_id = aws_security_group.example.id

  cidr_ipv4   = "${aws_eip.lb.public_ip}/32"
  from_port   = 443
  ip_protocol = "tcp"
  to_port     = 443
}

Cross Resource Attribute References resourceType.localResourceName.attribute aws_security_group.example.id
String Interpolation "${aws_eip.lb.public_ip}/32"

output-values

provider "aws" {
  region = "us-east-1"
}

resource "aws_eip" "lb" {
  domain   = "vpc"
}

output "public-ip" {
  value = aws_eip.lb.public_ip
}

Output

resource "aws_iam_user" "lb" {
  name = "iamuser.${count.index}"
  count = 3
  path = "/system/"
}

output "iam_names" {
  value = aws_iam_user.lb[*].name
}

output "iam_arn" {
  value = aws_iam_user.lb[*].arn
}

Console Command terraform output iam_names
Console Command terraform output iam_arn

Variables


SecurityGroup.tf

provider "aws" {
  region = "ap-south-1"
}

resource "aws_security_group" "allow_tls" {
  name        = "terraform-firewall"
  description = "Managed from Terraform"
}

resource "aws_vpc_security_group_ingress_rule" "allow_ssh_ipv4" {
  security_group_id = aws_security_group.allow_tls.id
  cidr_ipv4         = var.vpc_ip
  from_port         = var.ssh_port
  ip_protocol       = "tcp"
  to_port           = var.ssh_port
}

resource "aws_vpc_security_group_ingress_rule" "allow_http_ipv4" {
  security_group_id = aws_security_group.allow_tls.id
  cidr_ipv4         = var.open_ip
  from_port         = var.http_port
  ip_protocol       = "tcp"
  to_port           = var.http_port
}

resource "aws_vpc_security_group_egress_rule" "allow_all_traffic_ipv4" {
  security_group_id = aws_security_group.allow_tls.id
  cidr_ipv4         = var.open_ip
  ip_protocol       = "-1" # semantically equivalent to all ports
}

variables.tf

variable "vpc_ip" {
  default = "158.34.56.203/32"
  description = "This is Open Private Public IP"
}

variable "open_ip" {
  default = "0.0.0.0/0"
  description = "This is Open Public IP"
}

variable "ssh_port" {
  default = "22"
}

variable "http_port" {
  default = "80"
}

Variable Definitions File (TFVARS)

SecurityGroup.tf

provider "aws" {
  region = "ap-south-1"
}

resource "aws_security_group" "allow_tls" {
  name        = "terraform-firewall"
  description = "Managed from Terraform"
}

resource "aws_vpc_security_group_ingress_rule" "allow_ssh_ipv4" {
  security_group_id = aws_security_group.allow_tls.id
  cidr_ipv4         = var.vpc_ip
  from_port         = var.ssh_port
  ip_protocol       = "tcp"
  to_port           = var.ssh_port
}

resource "aws_vpc_security_group_ingress_rule" "allow_http_ipv4" {
  security_group_id = aws_security_group.allow_tls.id
  cidr_ipv4         = var.open_ip
  from_port         = var.http_port
  ip_protocol       = "tcp"
  to_port           = var.http_port
}

variables.tf

variable "vpc_ip" {
  description = "Now vpc_ip taken from dev.tfvars"
}

variable "open_ip" {
  default     = "1.1.1.1/1"
  description = "Even 1.1.1.1/1 is default for open_ip it will give priority to dev.tfvars only"
}

variable "ssh_port" {}

variable "http_port" {}

dev.tfvars

vpc_ip    = "158.34.56.203/32"
open_ip   = "0.0.0.0/0"
ssh_port  = "22"
http_port = "80"


terraform apply -auto-approve -var-file="dev.tfvars"

Variable Definition Precedence

variable.tf				<- Priority 4
Environment varibles	<- Priority 3
dev.tfvars				<- Priority 2
CLI -var-file			<- Priority 1

Data Types

string
number
bool
list
set
map
null

Data Types List & Number Example



variable "my-list" {
  type = list
}

variable "my-list" {
  type = list(number)
}

output "variable_value" {
  value = var.my-list
}

IAM Example

variable "username" {
   type = number
}

resource "aws_iam_user" "user" {
  name = var.username
}

EC2 Example

resource "aws_instance" "web" {
  ami           = "ami-0c101f26f147fa7fd"
  instance_type = "t3.micro"
  vpc_security_group_ids = ["sg-06dc77ed59c310f03"]
}

vpc_security_group_ids Should be in list as per terraform registry

Data Types Map

variable "my-map" {
  type = map
  default = {
    Name = "Alice"
    Team = "Payments"
  }
}

output "variable_value" {
  value = var.my-map  		# value = var.my-map["Team"]
}

Data Types Set

variable "my-set" {
  type = set
  default = {"Apple", "Banana", "Mango"}
}

output "variable_value" {
  value = var.my-set
}

Count & Count Index Parameter


Example

resource "aws_instance" "instance-1" {
   ami = "ami-082b5a644766e0e6f"
   instance_type = "t2.micro"
   count = 3
}

Main Example

variable "elb_names" {
  type = list
  default = ["dev-loadbalancer", "stage-loadbalanacer","prod-loadbalancer"]
}

resource "aws_iam_user" "lb" {
  name = var.elb_names[count.index]
  count = 3
  path = "/system/"
}

Conditional Expression


variable "istest" {
	istest = false
	}

resource "aws_instance" "dev" {
   ami = "ami-082b5a644766e0e6f"
   instance_type = "t2.micro"
   count = var.istest == true ? 3 : 0
}

resource "aws_instance" "prod" {
   ami = "ami-082b5a644766e0e6f"
   instance_type = "t2.large"
   count = var.istest == false ? 1 : 0
}

If istest = true then 3 EC2 "t2.micro" instances will created
If istest = false then 1 EC2 "t2.large" instance will created

Local Values

locals {
  common_tags = {
    Owner = "DevOps Team"
    service = "backend"
  }
}
resource "aws_instance" "app-dev" {
   ami = "ami-082b5a644766e0e6f"
   instance_type = "t2.micro"
   tags = local.common_tags
}

resource "aws_instance" "db-dev" {
   ami = "ami-082b5a644766e0e6f"
   instance_type = "t2.small"
   tags = local.common_tags
}

resource "aws_ebs_volume" "db_ebs" {
  availability_zone = "us-west-2a"
  size              = 8
  tags = local.common_tags
}

Function


locals {
  time = formatdate("DD MMM YYYY hh:mm ZZZ", timestamp())
}

variable "region" {
  default = "ap-south-1"
}

variable "tags" {
  type = list
  default = ["firstec2","secondec2"]
}

variable "ami" {
  type = map
  default = {
    "us-east-1" = "ami-0323c3dd2da7fb37d"
    "us-west-2" = "ami-0d6621c01e8c2de2c"
    "ap-south-1" = "ami-0470e33cd681b2476"
  }
}

resource "aws_key_pair" "loginkey" {
  key_name   = "login-key"
  public_key = file("${path.module}/id_rsa.pub")
}

resource "aws_instance" "app-dev" {
   ami = lookup(var.ami,var.region)
   instance_type = "t2.micro"
   key_name = aws_key_pair.loginkey.key_name
   count = 2

   tags = {
     Name = element(var.tags,count.index)
   }
}


output "timestamp" {
  value = local.time
}

Zipmap Function

zipmap(["pineapple","oranges","strawberry"], ["yellow","orange","red"])

resource "aws_iam_user" "lb" {
  name = "demo-user.${count.index}"
  count = 3
  path = "/system/"
}

output "arns" {
  value = aws_iam_user.lb[*].arn
}


output "zipmap" {
  value = zipmap(aws_iam_user.lb[*].name, aws_iam_user.lb[*].arn)
}

toset Function


toset function will convert LIST of values to SET
toset(["a","b","c","a"])

toset([
		"a",
		"b",
		"c",
	])

Data Sources

Intead Hardcoding Static value Dynamically call AWS Datasouce to fetch latest data

data-source-01.tf

terraform {
  required_providers {
    digitalocean = {
      source  = "digitalocean/digitalocean"
    }
  }
}

provider "digitalocean" {
  token = "your-token-here"
}

data "digitalocean_account" "example" {}

data-source-02.tf

data "local_file" "foo" {
  filename = "${path.module}/demo.txt"
}
output "data" {
    value = data.local_file.foo.content
}

data-source-03.tf

provider "aws" {
    region = "us-east-1"
}

data "aws_instances" "example" {}

data-source-format.tf

provider "aws" {
    region = "us-east-1"
}

data "aws_instance" "example" {
 filter {
    name   = "tag:Team"
    values = ["Production"]
  }
}

fetch-ami-data-source

provider "aws" {
  region = "ap-south-1"
}

data "aws_ami" "myimage" {
  most_recent      = true
  owners           = ["amazon"]

  filter {
    name   = "name"
    values = ["ubuntu/images/hvm-ssd/ubuntu-jammy-22.04-amd64-server-*"]
  }
}

resource "aws_instance" "web" {
  ami           = data.aws_ami.myimage.image_id
  instance_type = "t2.micro"
}

Debugging Terraform

export TF_LOG_PATH=/tmp/crash.log
export TF_LOG=TRACE

Dynamic Block


Example.tf

resource "aws_security_group" "demo_sg" {
  name        = "sample-sg"

  ingress {
    from_port   = 8300
    to_port     = 8300
    protocol    = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
  }

  ingress {
    from_port   = 9200
    to_port     = 9200
    protocol    = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
  }

  ingress {
    from_port   = 9500
    to_port     = 9500
    protocol    = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
  }
}

dynamic-block.tf

variable "sg_ports" {
  type        = list(number)
  description = "list of ingress ports"
  default     = [8200, 8201,8300, 9200, 9500]
}

resource "aws_security_group" "dynamicsg" {
  name        = "dynamic-sg"
  description = "Ingress for Vault"

  dynamic "ingress" {
    for_each = var.sg_ports
    iterator = port
    content {
      from_port   = port.value
      to_port     = port.value
      protocol    = "tcp"
      cidr_blocks = ["0.0.0.0/0"]
    }
  }

  dynamic "egress" {
    for_each = var.sg_ports
    content {
      from_port   = egress.value
      to_port     = egress.value
      protocol    = "tcp"
      cidr_blocks = ["0.0.0.0/0"]
    }
  }
}

Tainting / Replace


resource "aws_instance" "myec2" {
    ami = "ami-00c39f71452c08778"
    instance_type = "t2.micro"
}

Recreating the resource:
terraform apply -replace="aws_instance.myec2"
"terraform taint" command replaced by terraform apply -replace=""

Splat Expression "*"

resource "aws_iam_user" "lb" {
  name = "iamuser.${count.index}"
  count = 3
  path = "/system/"
}

output "arns" {
  value = aws_iam_user.lb[*].arn
}
"*" is the splat expression

Graph

resource "aws_instance" "myec2" {
   ami = "ami-082b5a644766e0e6f"
   instance_type = "t2.micro"
}

resource "aws_eip" "lb" {
  instance = aws_instance.myec2.id
  vpc      = true
}

resource "aws_security_group" "allow_tls" {
  name        = "allow_tls"

  ingress {
    description = "TLS from VPC"
    from_port   = 443
    to_port     = 443
    protocol    = "tcp"
    cidr_blocks = ["${aws_eip.lb.private_ip}/32"]

  }
}
terraform graph > graph.dot
yum install graphviz
cat graph.dot | dot -Tsvg > graph.svg

plan-file

terraform plan -out=demopath
terraform apply demopath

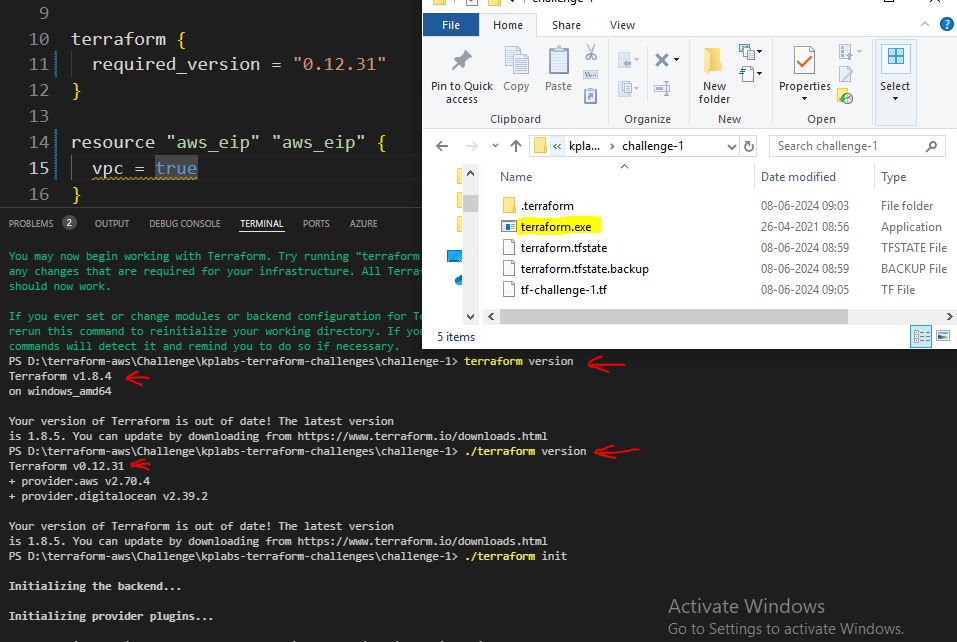

"terraform" Setting

terraform {
  required_version = "< 0.11"
  required_providers {
    aws = "~> 2.0"
  }
}

resource "aws_instance" "myec2" {
   ami = "ami-0b1e534a4ff9019e0"
   instance_type = "t2.micro"
}

large-infra

provider "aws" {
  region     = "ap-southeast-1"
  access_key = "YOUR-KEY"
  secret_key = "YOUR-KEY"
}

module "vpc" {
  source = "terraform-aws-modules/vpc/aws"

  name = "my-vpc"
  cidr = "10.0.0.0/16"

  azs             = ["ap-southeast-1a", "ap-southeast-1b", "ap-southeast-1c"]
  private_subnets = ["10.0.1.0/24", "10.0.2.0/24", "10.0.3.0/24"]
  public_subnets  = ["10.0.101.0/24", "10.0.102.0/24", "10.0.103.0/24"]

  tags = {
    Terraform = "true"
    Environment = "dev"
  }
}

resource "aws_security_group" "allow_ssh_conn" {
  name        = "allow_ssh_conn"
  description = "Allow SSH inbound traffic"

  ingress {
    description = "SSH into VPC"
    from_port   = 22
    to_port     = 22
    protocol    = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
  }
  ingress {
    description = "HTTP into VPC"
    from_port   = 80
    to_port     = 80
    protocol    = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
  }
  egress {
    description = "Outbound Allowed"
    from_port   = 0
    to_port     = 65535
    protocol    = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
  }
}


resource "aws_instance" "myec2" {
   ami = "ami-0b1e534a4ff9019e0"
   instance_type = "t2.micro"
   key_name = "ec2-key"
   vpc_security_group_ids  = [aws_security_group.allow_ssh_conn.id]
}

terrafom plan -target=ec2
Setting Refresh as False: terraform plan -refresh=false
Setting Refresh along with Target flags terraform plan -refresh=false -target=aws_security_group.allow_ssh_conn

AWS Hardening with Terraform Code


vpc flow logs
security hub
aws config
cloud trial

Seperate folders for each services
ec2.tf
rds.tf
sg.tf
vpc.tf

Lifecycle-meta-argument-ignore_changes

resource "aws_instance" "myec2" {
    ami = "ami-0f34c5ae932e6f0e4"
    instance_type = "t2.micro"

    tags = {
        Name = "HelloEarth"
    }

    lifecycle {
        ignore_changes = [tags]
		# ignore_changes = [tags,instance_type]
		# ignore_changes = all
    }
}

Lifecycle-meta-argument-create-before-destroy

resource "aws_instance" "myec2" {
    ami = "ami-0f34c5ae932e6f0e4"
    instance_type = "t2.micro"

    tags = {
        Name = "HelloEarth"
    }

    lifecycle {
      create_before_destroy = true
    }
}

Lifecycle-meta-argument-prevent_destroy

resource "aws_instance" "myec2" {
    ami = "ami-0f34c5ae932e6f0e4"
    instance_type = "t2.micro"

    tags = {
        Name = "HelloEarth"
    }

    lifecycle {
      prevent_destroy = true
    }
}

for_each

IAM User

resource "aws_iam_user" "iam" {
  for_each = toset( ["user-01","user-02", "user-03"] )
  name     = each.key
}

EC2 Instance Example-1

resource "aws_instance" "myec2" {
  ami = "ami-0cea098ed2ac54925"
  for_each  = {
      key1 = "t2.micro"
      key2 = "t2.medium"
   }
  instance_type    = each.value
  key_name         = each.key
  tags =  {
   Name = each.value
    }
}

EC2 Instance Example-2

variable "instance_config" {
  type = map(any)
  default = {
    instance1 = { instance_type = "t2.micro", ami = "ami-03a6eaae9938c858c" }
    instance2 = { instance_type = "t2.small", ami = "ami-053b0d53c279acc90" }
  }
}

resource "aws_instance" "AmazonAMI" {

  for_each      = var.instance_config
  instance_type = each.value.instance_type
  ami           = each.value.ami
  key_name      = each.key
  tags = {
    Name = each.value.instance_type
  }
}

Provisioners-local-exec

Provisioners is Removed/Deprecated

resource "aws_instance" "myec2" {
   ami = "ami-04e5276ebb8451442"
   instance_type = "t2.micro"

   provisioner "local-exec" {
    command = "echo ${self.private_ip} >> server_ip.txt"
   }
}

Scenerio 1

resource "aws_iam_user" "lb" {
  name = "demoiamuser"

  provisioner "local-exec" {
    command = "echo local-exec provisioner is starting"
  }
}

Scenerio 2

resource "aws_iam_user" "lb" {
  name = "demoiamuser"

  provisioner "local-exec" {
    command = "echo local-exec provisioner is starting"
  }

  provisioner "local-exec" {
    command = "echo local-exec provisioner is starting for 2nd time"
  }
}

Provisioners-remote-exec

resource "aws_instance" "myec2" {
   ami = "ami-04e5276ebb8451442"
   instance_type = "t2.micro"
   key_name = "terraform-key"
   vpc_security_group_ids = ["sg-0edf854d7112cfbf4"]

 connection {
    type     = "ssh"
    user     = "ec2-user"
    private_key  = file("./terraform-key.pem")
    host     = self.public_ip
  }

 provisioner "remote-exec" {
    inline = [
      "sudo yum -y install nginx",
      "sudo systemctl start nginx",
    ]
  }
}

console this command if facing Issue ssh -i terraform-key.pem ec2-user@54.234.184.188

provisioner-remote-exec-types
resource "aws_security_group" "allow_ssh" {
  name        = "allow_ssh"
  description = "Allow SSH inbound traffic"

  ingress {
    description = "SSH into VPC"
    from_port   = 22
    to_port     = 22
    protocol    = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
  }
  egress {
    description = "Outbound Allowed"
    from_port   = 0
    to_port     = 65535
    protocol    = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
  }
}

resource "aws_instance" "myec2" {
   ami = "ami-0b1e534a4ff9019e0"
   instance_type = "t2.micro"
   key_name = "ec2-key"
   vpc_security_group_ids  = [aws_security_group.allow_ssh.id]

   provisioner "remote-exec" {
     inline = [
       "sudo yum -y install nano"
     ]
   }
   provisioner "remote-exec" {
       when    = destroy
       inline = [
         "sudo yum -y remove nano"
       ]
     }
   connection {
     type = "ssh"
     user = "ec2-user"
     private_key = file("./ec2-key.pem")
     host = self.public_ip
   }
}

Provisioners-failure-behaviour


This will Fail

resource "aws_iam_user" "lb" {
  name = "demo-provisioner-user"

  provisioner "local-exec" {
    command = "echo1 This is creation time provisioner"
  }
}

on-failure to continue

resource "aws_iam_user" "lb" {
  name = "demo-provisioner-user"

  provisioner "local-exec" {
    command = "echo1 This is creation time provisioner"
    on_failure = continue
  }
}

Provisioners-create-destroy-time-provisioner


resource "aws_iam_user" "lb" {
  name = "provisioner-user"

  provisioner "local-exec" {
    command = "echo This is creation time provisioner"
  }

  provisioner "local-exec" {
    command = "echo This is destroy time provisioner"
    when    =  destroy
  }
}

Simulating failure to see Tainting of Resource

resource "aws_iam_user" "lb" {
  name = "provisioner-user"

  provisioner "local-exec" {
    command = "This is creation time provisioner"
  }

  provisioner "local-exec" {
    command = "echo This is destroy time provisioner"
    when    =  destroy
  }
}

Modules

We can centralize terraform resources and call from tf files whenever required. (module "source")
Root Module  -> module "ec2"
Child Module -> source = "./app"

Modules Locations

1. Github
2. HTTP URLs
3. S3 Buckets
4. Terraform Registry
5. Local paths

module "ec2" {
	source = "../modules/ec2"
}

module "ec2" {
	source = "git::"
	version = "0.2"
}

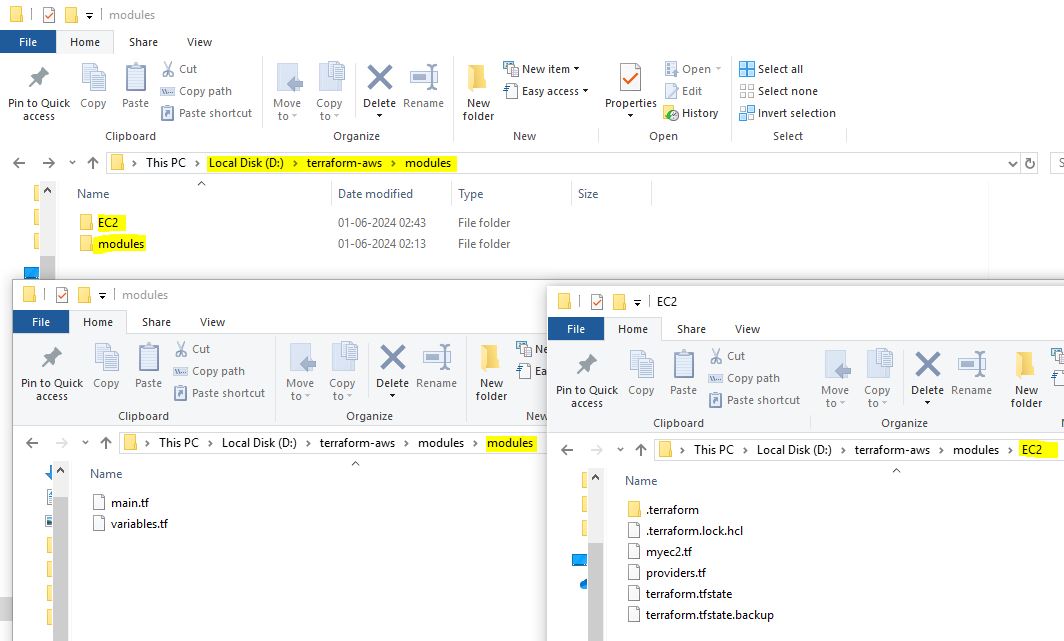

Modules-local-Output




Modules

main.tf

resource "aws_instance" "ec2" {
  ami                                  = var.ami
  instance_type                        = local.instance_type
  key_name                             = var.key_name
  monitoring                           = var.monitoring
  vpc_security_group_ids               = var.vpc_security_group_ids
  associate_public_ip_address          = var.associate_public_ip_address
  instance_initiated_shutdown_behavior = var.instance_initiated_shutdown_behavior
  source_dest_check                    = var.source_dest_check
  disable_api_termination              = var.disable_api_termination
}

locals {
  instance_type = "t2.micro"
}

output "ec2Output" {
  value = aws_instance.ec2[*]
}


variables.tf

variable "ami" {
  default = "ami-00fa32593b478ad6e"
}
variable "key_name" {
  default = "VKNMatrimony"
}
variable "monitoring" {
  default = true
}
variable "vpc_security_group_ids" {
  default = ["sg-0577927322bbe2b2a"]
}
variable "associate_public_ip_address" {
  default = true
}
variable "instance_initiated_shutdown_behavior" {
  default = "stop"
}
variable "source_dest_check" {
  default = false
}
variable "disable_api_termination" {
  default = true
}

EC2

myec2.tf

module "ec2module" {
  source                      = "../modules"
  associate_public_ip_address = false
}

resource "aws_eip" "lb" {
  instance = module.ec2module.ec2Output[0].id
  domain   = "vpc"
}

output "ModuleOutput" {
  value = module.ec2module.ec2Output
}

output "ElasticIPOutput" {
  value = aws_eip.lb
}

Modules-local-Output->ConsoleLog

PS D:\terraform-aws\modules\EC2> terraform apply --auto-approve

Terraform used the selected providers to generate the following execution plan. Resource actions are indicated with the following symbols:
  + create

Terraform will perform the following actions:

  # aws_eip.lb will be created
  + resource "aws_eip" "lb" {
      + allocation_id        = (known after apply)
      + arn                  = (known after apply)
      + association_id       = (known after apply)
      + carrier_ip           = (known after apply)
      + customer_owned_ip    = (known after apply)
      + domain               = "vpc"
      + id                   = (known after apply)
      + instance             = (known after apply)
      + network_border_group = (known after apply)
      + network_interface    = (known after apply)
      + private_dns          = (known after apply)
      + private_ip           = (known after apply)
      + ptr_record           = (known after apply)
      + public_dns           = (known after apply)
      + public_ip            = (known after apply)
      + public_ipv4_pool     = (known after apply)
      + tags_all             = (known after apply)
      + vpc                  = (known after apply)
    }

  # module.ec2module.aws_instance.ec2 will be created
  + resource "aws_instance" "ec2" {
      + ami                                  = "ami-00fa32593b478ad6e"
      + arn                                  = (known after apply)
      + associate_public_ip_address          = false
      + availability_zone                    = (known after apply)
      + cpu_core_count                       = (known after apply)
      + cpu_threads_per_core                 = (known after apply)
      + disable_api_stop                     = (known after apply)
      + disable_api_termination              = true
      + ebs_optimized                        = (known after apply)
      + get_password_data                    = false
      + host_id                              = (known after apply)
      + host_resource_group_arn              = (known after apply)
      + iam_instance_profile                 = (known after apply)
      + id                                   = (known after apply)
      + instance_initiated_shutdown_behavior = "stop"
      + instance_lifecycle                   = (known after apply)
      + instance_state                       = (known after apply)
      + instance_type                        = "t2.micro"
      + ipv6_address_count                   = (known after apply)
      + ipv6_addresses                       = (known after apply)
      + key_name                             = "VKNMatrimony"
      + monitoring                           = true
      + outpost_arn                          = (known after apply)
      + password_data                        = (known after apply)
      + placement_group                      = (known after apply)
      + placement_partition_number           = (known after apply)
      + primary_network_interface_id         = (known after apply)
      + private_dns                          = (known after apply)
      + private_ip                           = (known after apply)
      + public_dns                           = (known after apply)
      + public_ip                            = (known after apply)
      + secondary_private_ips                = (known after apply)
      + security_groups                      = (known after apply)
      + source_dest_check                    = false
      + spot_instance_request_id             = (known after apply)
      + subnet_id                            = (known after apply)
      + tags_all                             = (known after apply)
      + tenancy                              = (known after apply)
      + user_data                            = (known after apply)
      + user_data_base64                     = (known after apply)
      + user_data_replace_on_change          = false
      + vpc_security_group_ids               = [
          + "sg-0577927322bbe2b2a",
        ]
    }

Plan: 2 to add, 0 to change, 0 to destroy.

Changes to Outputs:
  + ElasticIPOutput = {
      + address                   = null
      + allocation_id             = (known after apply)
      + arn                       = (known after apply)
      + associate_with_private_ip = null
      + association_id            = (known after apply)
      + carrier_ip                = (known after apply)
      + customer_owned_ip         = (known after apply)
      + customer_owned_ipv4_pool  = null
      + domain                    = "vpc"
      + id                        = (known after apply)
      + instance                  = (known after apply)
      + network_border_group      = (known after apply)
      + network_interface         = (known after apply)
      + private_dns               = (known after apply)
      + private_ip                = (known after apply)
      + ptr_record                = (known after apply)
      + public_dns                = (known after apply)
      + public_ip                 = (known after apply)
      + public_ipv4_pool          = (known after apply)
      + tags                      = null
      + tags_all                  = (known after apply)
      + timeouts                  = null
      + vpc                       = (known after apply)
    }
  + ModuleOutput    = [
      + {
          + ami                                  = "ami-00fa32593b478ad6e"
          + arn                                  = (known after apply)
          + associate_public_ip_address          = false
          + availability_zone                    = (known after apply)
          + capacity_reservation_specification   = (known after apply)
          + cpu_core_count                       = (known after apply)
          + cpu_options                          = (known after apply)
          + cpu_threads_per_core                 = (known after apply)
          + credit_specification                 = []
          + disable_api_stop                     = (known after apply)
          + disable_api_termination              = true
          + ebs_block_device                     = (known after apply)
          + ebs_optimized                        = (known after apply)
          + enclave_options                      = (known after apply)
          + ephemeral_block_device               = (known after apply)
          + get_password_data                    = false
          + hibernation                          = null
          + host_id                              = (known after apply)
          + host_resource_group_arn              = (known after apply)
          + iam_instance_profile                 = (known after apply)
          + id                                   = (known after apply)
          + instance_initiated_shutdown_behavior = "stop"
          + instance_lifecycle                   = (known after apply)
          + instance_market_options              = (known after apply)
          + instance_state                       = (known after apply)
          + instance_type                        = "t2.micro"
          + ipv6_address_count                   = (known after apply)
          + ipv6_addresses                       = (known after apply)
          + key_name                             = "VKNMatrimony"
          + launch_template                      = []
          + maintenance_options                  = (known after apply)
          + metadata_options                     = (known after apply)
          + monitoring                           = true
          + network_interface                    = (known after apply)
          + outpost_arn                          = (known after apply)
          + password_data                        = (known after apply)
          + placement_group                      = (known after apply)
          + placement_partition_number           = (known after apply)
          + primary_network_interface_id         = (known after apply)
          + private_dns                          = (known after apply)
          + private_dns_name_options             = (known after apply)
          + private_ip                           = (known after apply)
          + public_dns                           = (known after apply)
          + public_ip                            = (known after apply)
          + root_block_device                    = (known after apply)
          + secondary_private_ips                = (known after apply)
          + security_groups                      = (known after apply)
          + source_dest_check                    = false
          + spot_instance_request_id             = (known after apply)
          + subnet_id                            = (known after apply)
          + tags                                 = null
          + tags_all                             = (known after apply)
          + tenancy                              = (known after apply)
          + timeouts                             = null
          + user_data                            = (known after apply)
          + user_data_base64                     = (known after apply)
          + user_data_replace_on_change          = false
          + volume_tags                          = null
          + vpc_security_group_ids               = [
              + "sg-0577927322bbe2b2a",
            ]
        },
    ]
module.ec2module.aws_instance.ec2: Creating...
module.ec2module.aws_instance.ec2: Still creating... [10s elapsed]
module.ec2module.aws_instance.ec2: Still creating... [20s elapsed]
module.ec2module.aws_instance.ec2: Still creating... [30s elapsed]
module.ec2module.aws_instance.ec2: Creation complete after 33s [id=i-0aa1f5c14d0191cda]
aws_eip.lb: Creating...
aws_eip.lb: Creation complete after 1s [id=eipalloc-018f527379f9048b8]

Apply complete! Resources: 2 added, 0 changed, 0 destroyed.

Outputs:

ElasticIPOutput = {
  "address" = tostring(null)
  "allocation_id" = "eipalloc-018f527379f9048b8"
  "arn" = "arn:aws:ec2:ap-south-1:927437247370:elastic-ip/eipalloc-018f527379f9048b8"
  "associate_with_private_ip" = tostring(null)
  "association_id" = "eipassoc-042cab9dc8771a592"
  "carrier_ip" = ""
  "customer_owned_ip" = ""
  "customer_owned_ipv4_pool" = ""
  "domain" = "vpc"
  "id" = "eipalloc-018f527379f9048b8"
  "instance" = "i-0aa1f5c14d0191cda"
  "network_border_group" = "ap-south-1"
  "network_interface" = "eni-0a6d24ba8202461d9"
  "private_dns" = "ip-172-31-34-194.ap-south-1.compute.internal"
  "private_ip" = "172.31.34.194"
  "ptr_record" = ""
  "public_dns" = "ec2-13-200-109-120.ap-south-1.compute.amazonaws.com"
  "public_ip" = "13.200.109.120"
  "public_ipv4_pool" = "amazon"
  "tags" = tomap(null) /* of string */
  "tags_all" = tomap({})
  "timeouts" = null /* object */
  "vpc" = true
}
ModuleOutput = [
  {
    "ami" = "ami-00fa32593b478ad6e"
    "arn" = "arn:aws:ec2:ap-south-1:927437247370:instance/i-0aa1f5c14d0191cda"
    "associate_public_ip_address" = true
    "availability_zone" = "ap-south-1a"
    "capacity_reservation_specification" = tolist([
      {
        "capacity_reservation_preference" = "open"
        "capacity_reservation_target" = tolist([])
      },
    ])
    "cpu_core_count" = 1
    "cpu_options" = tolist([
      {
        "amd_sev_snp" = ""
        "core_count" = 1
        "threads_per_core" = 1
      },
    ])
    "cpu_threads_per_core" = 1
    "credit_specification" = tolist([
      {
        "cpu_credits" = "standard"
      },
    ])
    "disable_api_stop" = false
    "disable_api_termination" = true
    "ebs_block_device" = toset([])
    "ebs_optimized" = false
    "enclave_options" = tolist([
      {
        "enabled" = false
      },
    ])
    "ephemeral_block_device" = toset([])
    "get_password_data" = false
    "hibernation" = false
    "host_id" = ""
    "host_resource_group_arn" = tostring(null)
    "iam_instance_profile" = ""
    "id" = "i-0aa1f5c14d0191cda"
    "instance_initiated_shutdown_behavior" = "stop"
    "instance_lifecycle" = ""
    "instance_market_options" = tolist([])
    "instance_state" = "running"
    "instance_type" = "t2.micro"
    "ipv6_address_count" = 0
    "ipv6_addresses" = tolist([])
    "key_name" = "VKNMatrimony"
    "launch_template" = tolist([])
    "maintenance_options" = tolist([
      {
        "auto_recovery" = "default"
      },
    ])
    "metadata_options" = tolist([
      {
        "http_endpoint" = "enabled"
        "http_protocol_ipv6" = "disabled"
        "http_put_response_hop_limit" = 2
        "http_tokens" = "required"
        "instance_metadata_tags" = "disabled"
      },
    ])
    "monitoring" = true
    "network_interface" = toset([])
    "outpost_arn" = ""
    "password_data" = ""
    "placement_group" = ""
    "placement_partition_number" = 0
    "primary_network_interface_id" = "eni-0a6d24ba8202461d9"
    "private_dns" = "ip-172-31-34-194.ap-south-1.compute.internal"
    "private_dns_name_options" = tolist([
      {
        "enable_resource_name_dns_a_record" = false
        "enable_resource_name_dns_aaaa_record" = false
        "hostname_type" = "ip-name"
      },
    ])
    "private_ip" = "172.31.34.194"
    "public_dns" = "ec2-13-233-125-208.ap-south-1.compute.amazonaws.com"
    "public_ip" = "13.233.125.208"
    "root_block_device" = tolist([
      {
        "delete_on_termination" = true
        "device_name" = "/dev/xvda"
        "encrypted" = false
        "iops" = 3000
        "kms_key_id" = ""
        "tags" = tomap({})
        "tags_all" = tomap({})
        "throughput" = 125
        "volume_id" = "vol-0ebd88b75504eafc3"
        "volume_size" = 8
        "volume_type" = "gp3"
      },
    ])
    "secondary_private_ips" = toset([])
    "security_groups" = toset([
      "vijay-terraform-firewall",
    ])
    "source_dest_check" = false
    "spot_instance_request_id" = ""
    "subnet_id" = "subnet-0336a23d310337a48"
    "tags" = tomap(null) /* of string */
    "tags_all" = tomap({})
    "tenancy" = "default"
    "timeouts" = null /* object */
    "user_data" = tostring(null)
    "user_data_base64" = tostring(null)
    "user_data_replace_on_change" = false
    "volume_tags" = tomap(null) /* of string */
    "vpc_security_group_ids" = toset([
      "sg-0577927322bbe2b2a",
    ])
  },
]

Workspace

Workspaces allow multiple state files of a single configuration

resource "aws_instance" "myec2" {
  ami           = "ami-0fbeaa7bf4665bd6f"
  instance_type = lookup(var.instance_type, terraform.workspace) #lookup(map, key, default)
}

variable "instance_type" {
  type = map(any)

  default = {
    default = "t2.medium"
    dev     = "t2.micro"
    prd     = "t2.large"
  }
}

Workspace-Output




PS D:\terraform-aws\SecurityGroup\workspace> terraform workspace
Usage: terraform [global options] workspace

  new, list, show, select and delete Terraform workspaces.

Subcommands:
    delete    Delete a workspace
    list      List Workspaces
    new       Create a new workspace
    select    Select a workspace
    show      Show the name of the current workspace
PS D:\terraform-aws\SecurityGroup\workspace> terraform workspace show
default
PS D:\terraform-aws\SecurityGroup\workspace> terraform workspace list
* default
PS D:\terraform-aws\SecurityGroup\workspace> terraform workspace new dev
Created and switched to workspace "dev"!
PS D:\terraform-aws\SecurityGroup\workspace> terraform workspace new prd
Created and switched to workspace "prd"!
PS D:\terraform-aws\SecurityGroup\workspace> terraform workspace list
  default
  dev
* prd
PS D:\terraform-aws\SecurityGroup\vijay> terraform workspace select dev
Switched to workspace "dev".
PS D:\terraform-aws\SecurityGroup\vijay> terraform plan
# aws_instance.myec2 will be created
  + resource "aws_instance" "myec2" {
      + ami                                  = "ami-0fbeaa7bf4665bd6f"
      + instance_type                        = "t2.micro"
PS D:\terraform-aws\SecurityGroup\vijay> terraform workspace select prd
Switched to workspace "prd".
PS D:\terraform-aws\SecurityGroup\vijay> terraform plan
# aws_instance.myec2 will be created
  + resource "aws_instance" "myec2" {
      + ami                                  = "ami-0fbeaa7bf4665bd6f"
      + instance_type                        = "t2.large"


.tfstate file will be saved in folder terraform.tfstate.d and inside dev folder .tfstate file will be saved

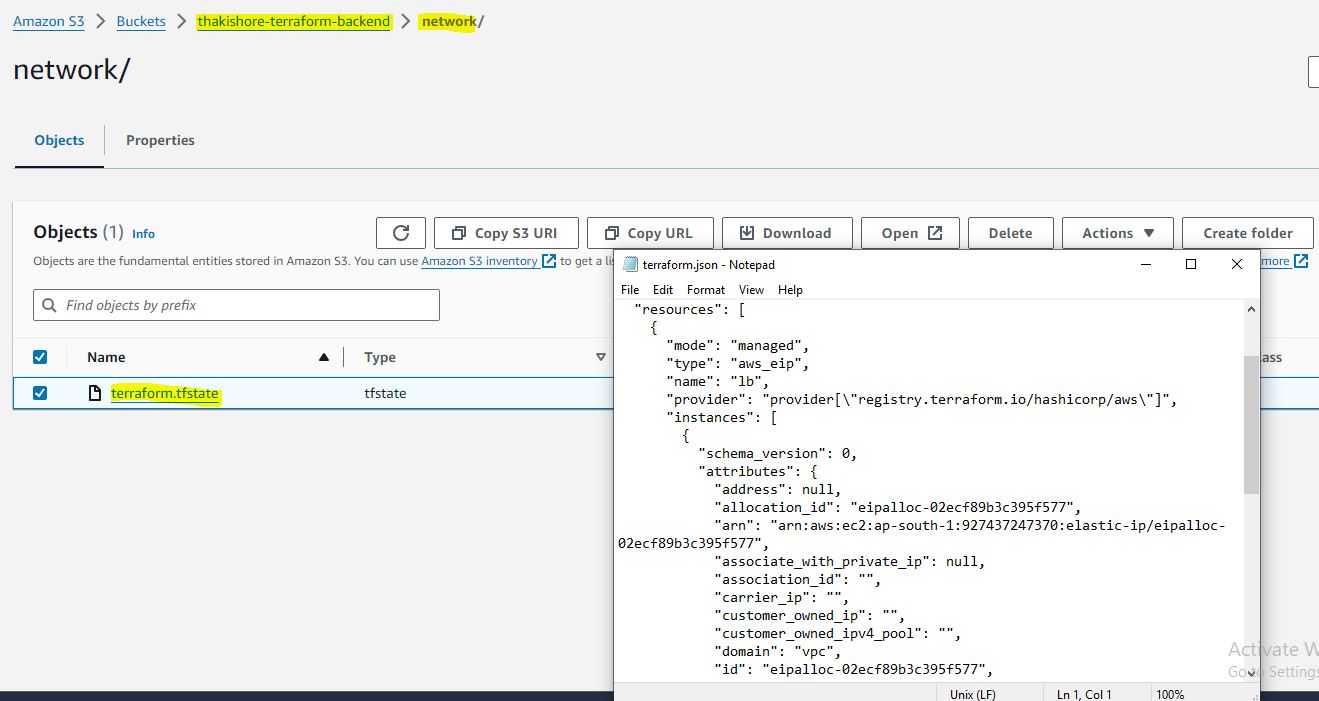

S3 Backend




backend.tf

terraform {
  backend "s3" {
    bucket = "thakishore-bitbucket-terraform"
    key    = "bitbucket-terraform.tfstate"
    region = "ap-south-1"
  }
}

main.tf

resource "aws_eip" "lb" {
  domain = "vpc"
}

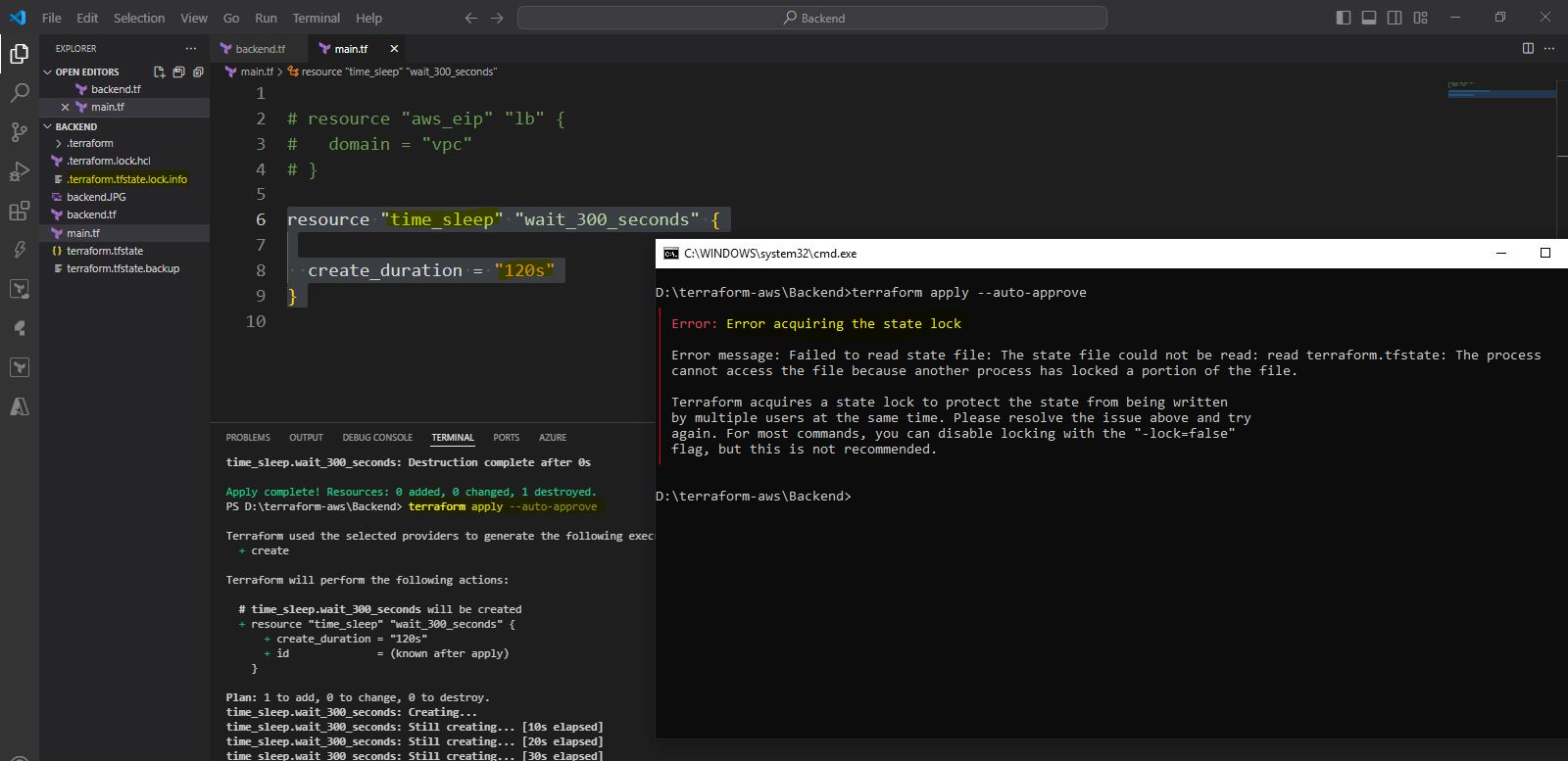

State File Locking




sleep.tf
resource "time_sleep" "wait_300_seconds" {

  create_duration = "300s"
}

If Simuntaneous users uses terraform commands new user will get shown error

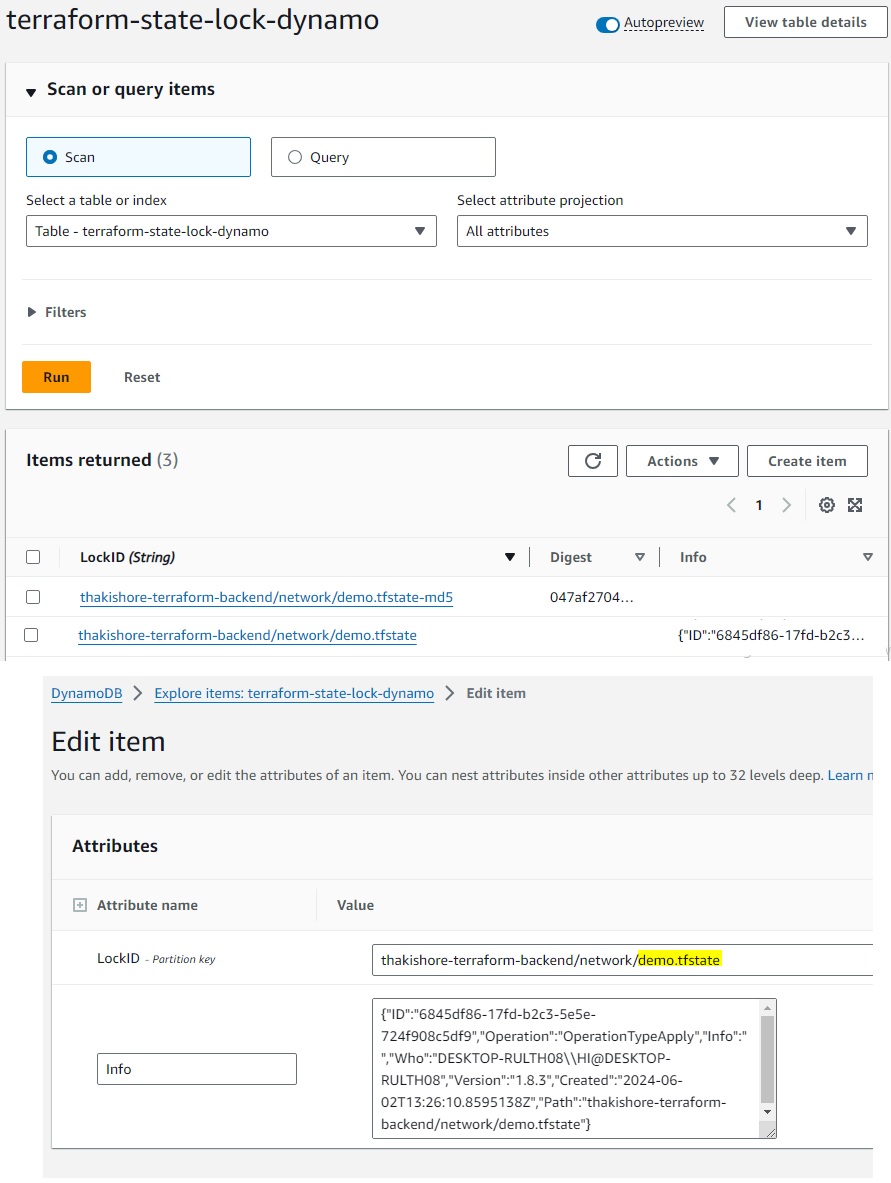

StateFileLockDynamo





terraform {
  backend "s3" {
    bucket         = "thakishore-terraform-backend"
    dynamodb_table = "terraform-state-lock-dynamo"
    key            = "network/demo.tfstate"
    region         = "ap-south-1"
  }
}

resource "time_sleep" "wait_150_seconds" {

  create_duration = "150s"
}

terraform apply -replace="time_sleep.wait_150_seconds
demo.tfstate file will be removed if lock released

State Management


terraform state list		->	List resources within terraform state file
terraform state pull		->	Manually download and output the state from remote stateList resources within terraform state file
terraform state push		->	Manually upload a local state file to remote state
terraform state rm time_sleep.wait_120_seconds		->	Remove items from the terraform state
terraform state show time_sleep.wait_120_seconds	->	Show the attributes of a single resource in the state
terraform state mv time_sleep.wait_150_seconds time_sleep.wait_120_seconds	->	Moves item with terraform state

Remote State


Network Team
backend.tf
terraform {
  backend "s3" {
    bucket         = "thakishore-terraform-backend"
    key            = "network/eip.tfstate"
    region         = "ap-south-1"
  }
}

eip.tf
resource "aws_eip" "lb" {
  vpc      = true
}

output "eip_addr" {
  value = aws_eip.lb.public_ip
}

Security Team
remote-state.tf

data "terraform_remote_state" "eip" {
  backend = "s3"

  config = {
    bucket = "thakishore-terraform-backend"
    key    = "network/eip.tfstate"
    region = "us-east-1"
    }
  }

sg.tf

  resource "aws_security_group" "allow_tls" {
  name        = "allow_tls"
  description = "Allow TLS inbound traffic"

  ingress {
    description      = "TLS from VPC"
    from_port        = 443
    to_port          = 443
    protocol         = "tcp"
    cidr_blocks      = ["${data.terraform_remote_state.eip.outputs.eip_addr}/32"]
  }

  egress {
    from_port        = 0
    to_port          = 0
    protocol         = "-1"
    cidr_blocks      = ["0.0.0.0/0"]
    ipv6_cidr_blocks = ["::/0"]
  }
}

Import


Import Block

import {
  to = aws_security_group.New-SG
  id = "sg-005168b9ac9dd37b7"
}
resource "aws_security_group" "New-SG" {
  name = "New-SG"
  # Initially, this can be empty or have some basic information
  # Terraform will update the state after import
}

Import Command

terraform import aws_security_group.New-SG sg-005168b9ac9dd37b7

Import Plan Commands

terraform plan -generate-config-out
terraform plan -generate-config-out=generated.tf
terraform plan -generate-config-out=mysg.tf -chdir D:\AWS Triad & Terraform\import

Terraform Import available from Terraform 1.5 version onwards not before

Multiple-Providers


providers.tf

provider "aws" {
  region     =  "us-west-1"
}

provider "aws" {
  alias      =  "aws02"
  region     =  "ap-south-1"
  profile    =  "account02"
}

eip.tf

resource "aws_eip" "myeip" {
  vpc = "true"
}

resource "aws_eip" "myeip01" {
  domain = "vpc"
  provider = "aws.aws02"
}

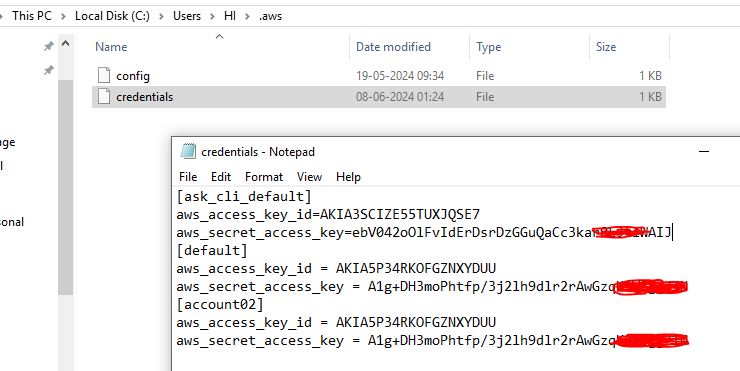

.aws
From cli aws s3 ls --profile account02



[default]
aws_access_key_id = xxxxxxxxxxxxxxxxx
aws_secret_access_key = xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

[account02]
aws_access_key_id = xxxxxxxxxxxxxxxxx
aws_secret_access_key = xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

Sensitive Parameter


locals {
  db_password = {
    admin = "password"
  }
}

output "db_password" {
  value = local.db_password
  sensitive   = true
}

Vault

provider "vault" {
  address = "http://127.0.0.1:8200"
}

data "vault_generic_secret" "demo" {
  path = "secret/db_creds"
}

output "vault_secrets" {
  value = data.vault_generic_secret.demo.data_json
  sensitive = "true"
}

Dependency-lock

terraform {
  required_providers {
    aws = {
      source  = "hashicorp/aws"
      version = "4.60"
    }
  }
}

# Configure the AWS Provider
provider "aws" {
  region = "us-east-1"
}

resource "aws_instance" "web" {
  ami           = ami-123
  instance_type = "t2.micro"
}

Heredoc Syntax

EOF - End of File
EOT - End of Text
END

user_data = <<-EOF

  $newHostname = "New-Hostname"
  Rename-Computer -NewName $newHostname -Force -PassThru
  Restart-Computer -Force

EOF

Terraform-Older-Version

terraform older version releases
https://releases.hashicorp.com/terraform

provider "aws" {
  version    = "~> 2.54"
  region     = "ap-south-1"
  access_key = "xxxxxx"
  secret_key = "xxxxxxxxxxxxxxxxx"
}

provider "digitalocean" {}

terraform {
  required_version = "0.12.31"
}

resource "aws_eip" "eip" {
  vpc = true
}

Example-1

data "aws_iam_users" "users" {}

data "aws_caller_identity" "current" {}

output "accountid" {
  value = data.aws_caller_identity.current.account_id
}

resource "aws_iam_user" "user_name" {
  name = "admin-user-${data.aws_caller_identity.current.account_id}"
  path = "/system/"
}

output "user_names" {
  value = data.aws_iam_users.users.names
}

output "total_users" {
  value = length(data.aws_iam_users.users.names)
}

Outputs
Changes to Outputs:
  + accountid   = "590184002190"
  + total_users = 1
  + user_names  = [
      + "terraform",
    ]

STS Pending
