Gitlab Commands

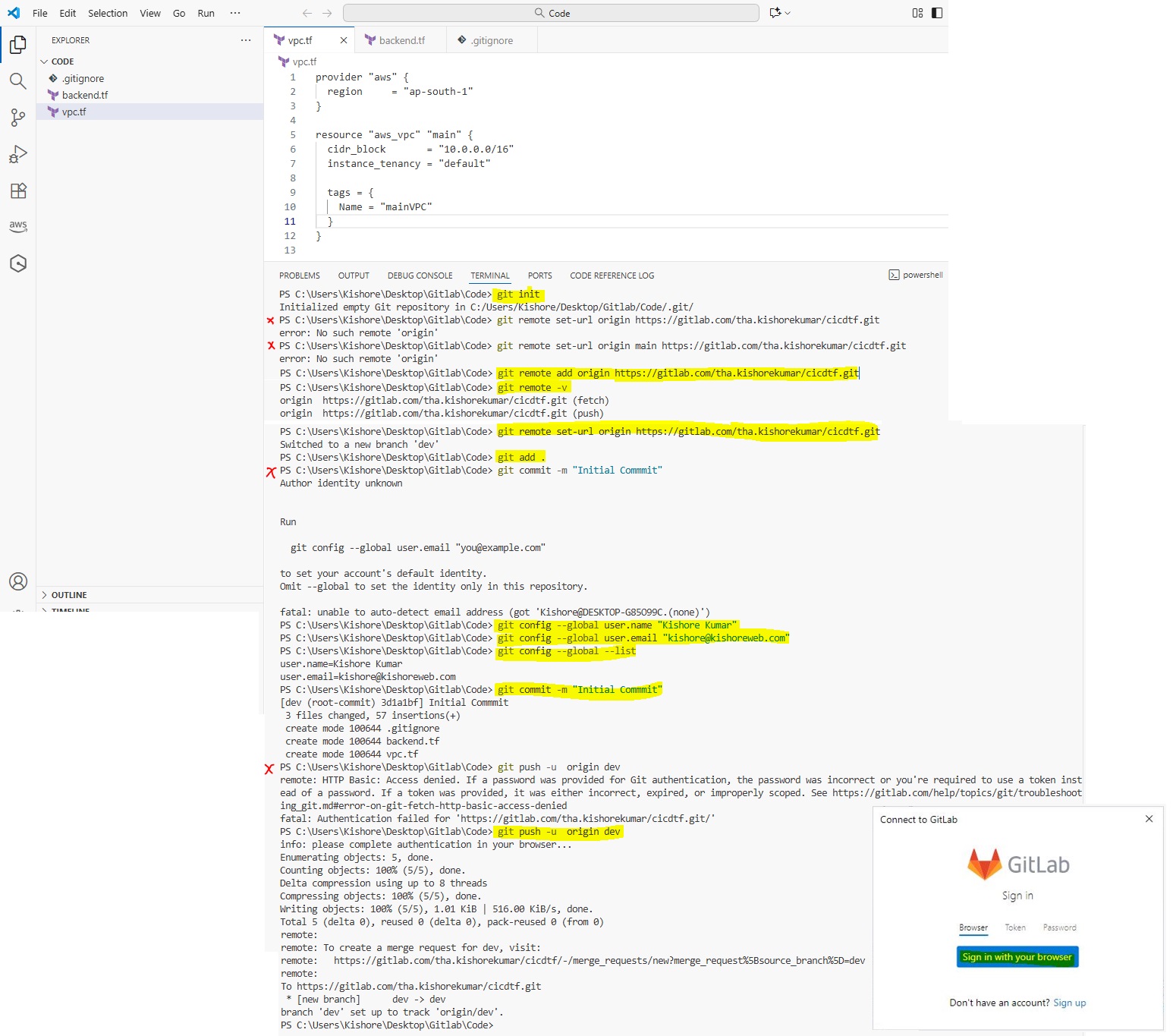

git init
git remote add origin https://gitlab.com/tha.kishorekumar/cicdtf.git
git remote -v
git remote set-url origin https://gitlab.com/tha.kishorekumar/cicdtf.git
git add .
git config --global user.name "Kishore Kumar"
git config --global user.email "kishore@kishoreweb.com"
git config --global --list
git commit -m "Initial Commmit"

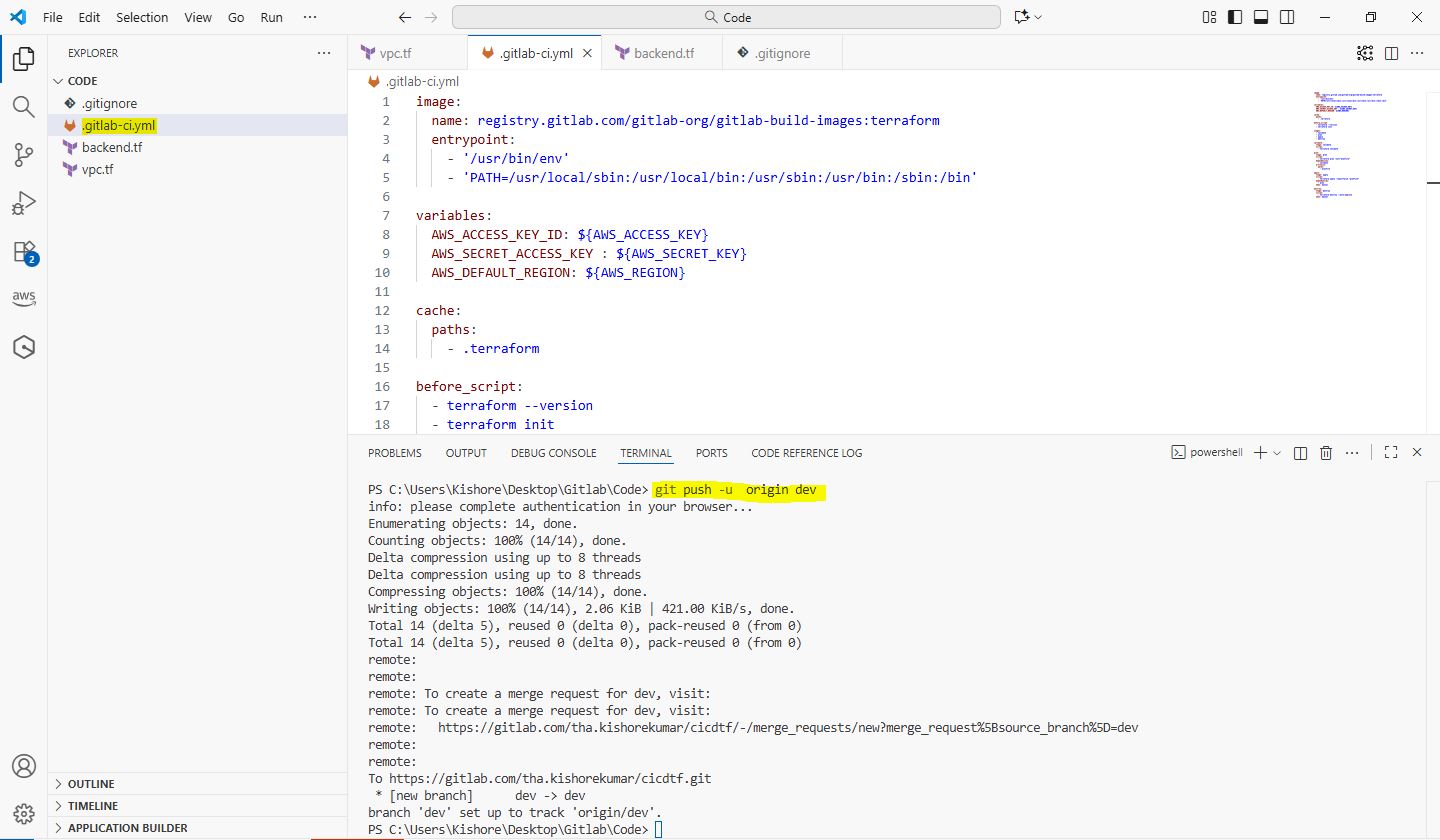

git push -u  origin dev

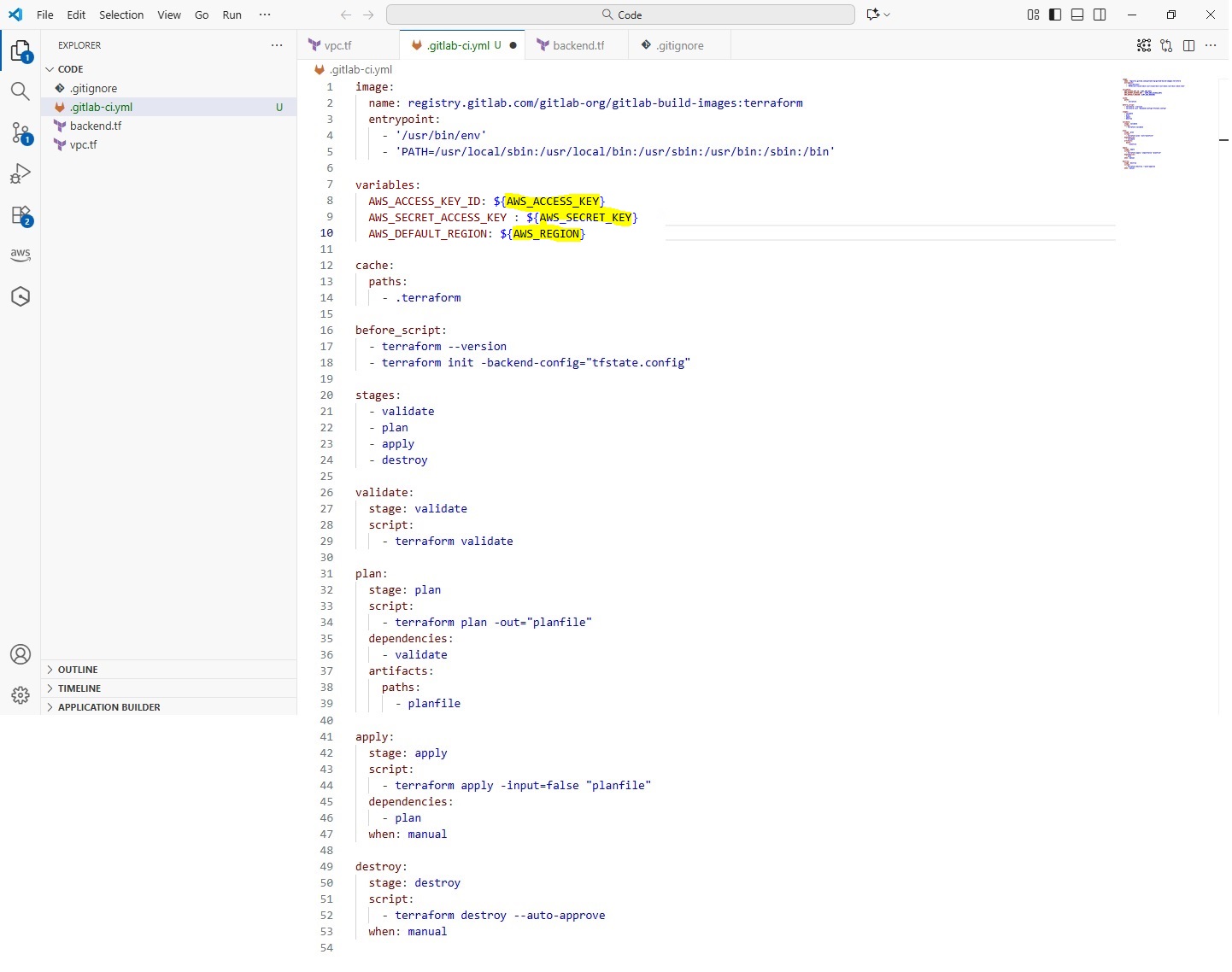

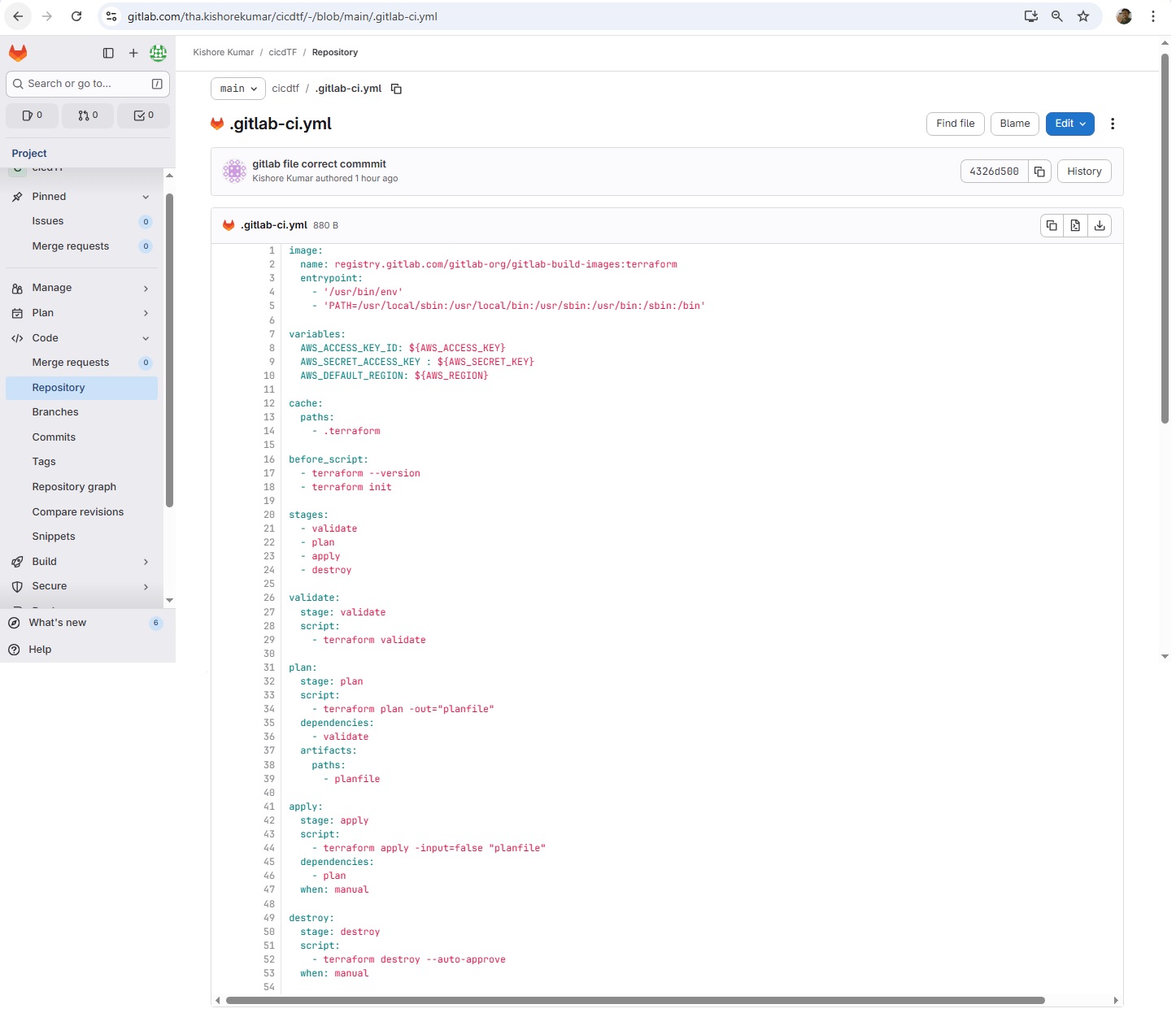

.gitlab-ci.yml

image:
  name: registry.gitlab.com/gitlab-org/gitlab-build-images:terraform
  entrypoint:
    - '/usr/bin/env'
    - 'PATH=/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin'

variables:

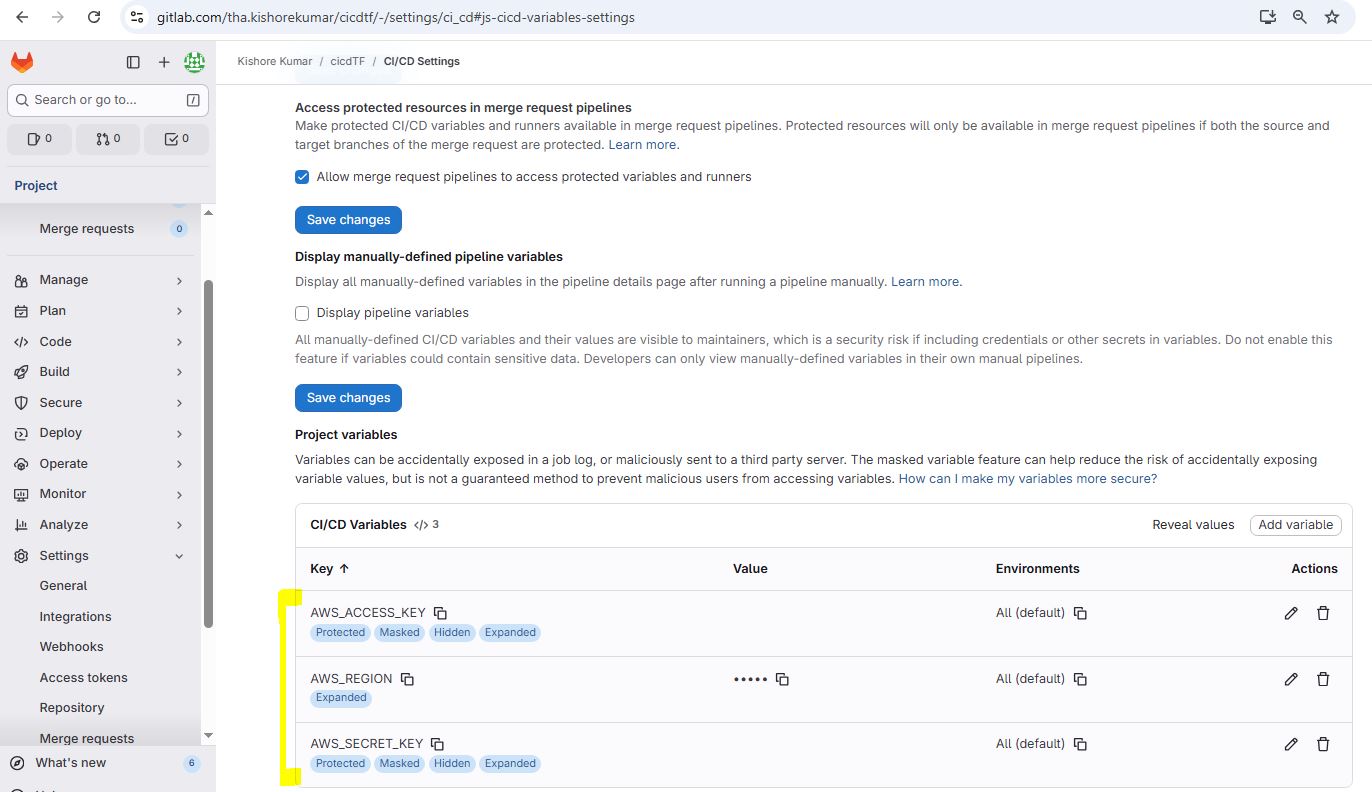

  AWS_ACCESS_KEY_ID: ${AWS_ACCESS_KEY}
  AWS_SECRET_ACCESS_KEY : ${AWS_SECRET_KEY}
  AWS_DEFAULT_REGION: ${AWS_REGION}

cache:
  paths:
    - .terraform

before_script:
  - terraform --version
  - terraform init

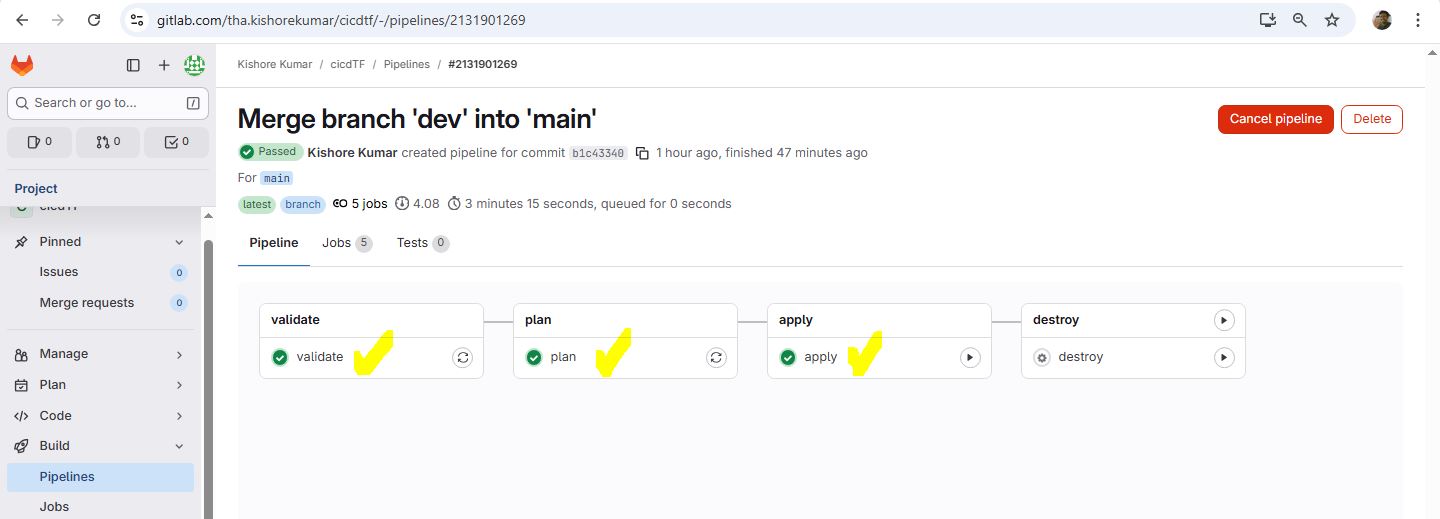

stages:
  - validate
  - plan
  - apply
  - destroy

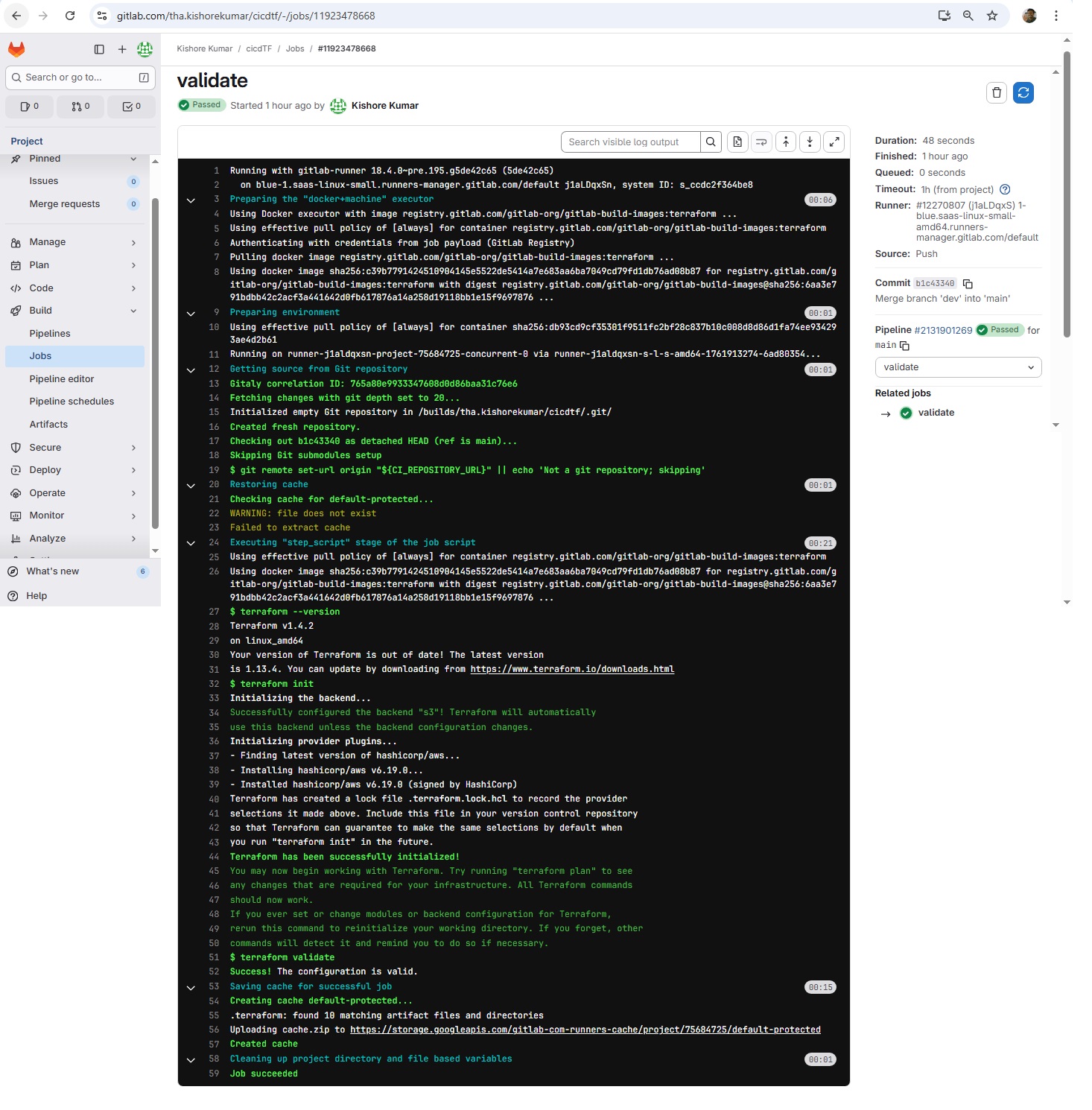

validate:
  stage: validate
  script:
    - terraform validate

plan:
  stage: plan
  script:
    - terraform plan -out="planfile"
  dependencies:
    - validate
  artifacts:
    paths:
      - planfile

apply:
  stage: apply
  script:
    - terraform apply -input=false "planfile"
  dependencies:
    - plan
  when: manual

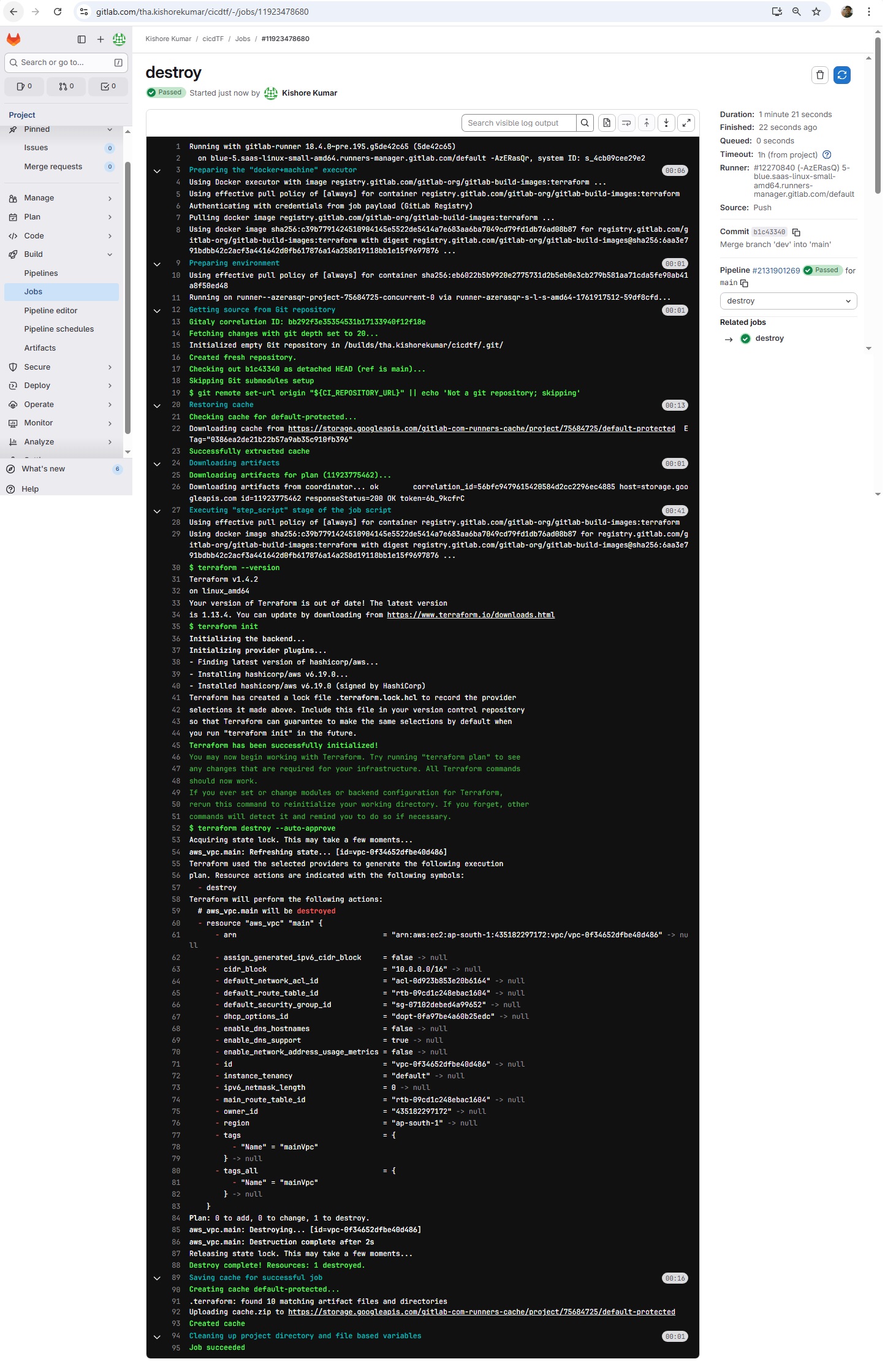

destroy:
  stage: destroy
  script:
    - terraform destroy --auto-approve
  when: manual

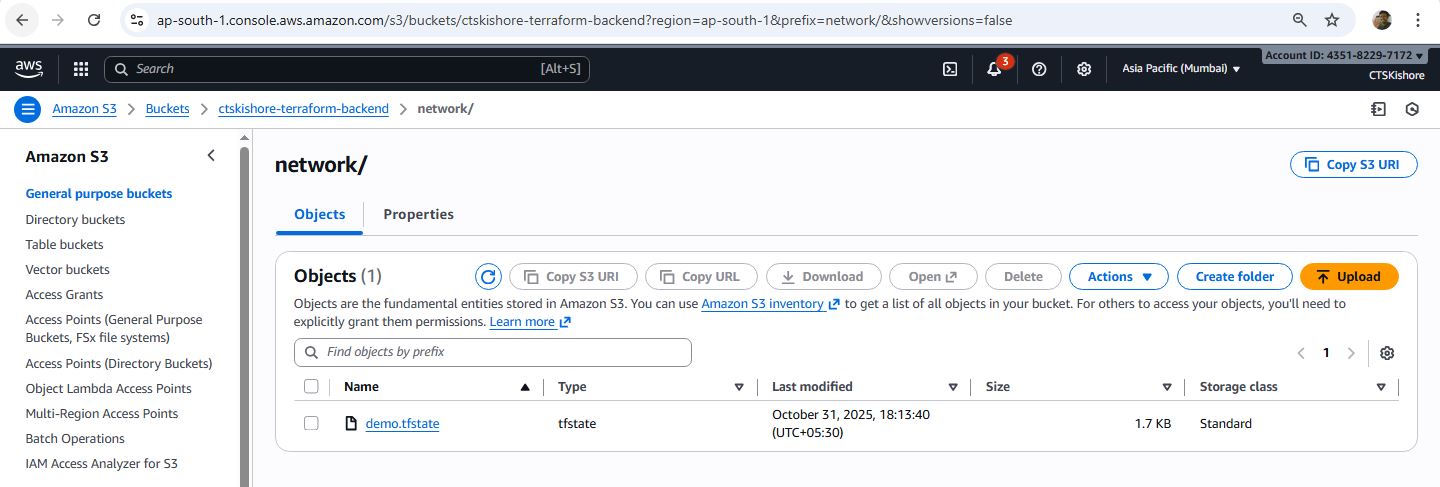

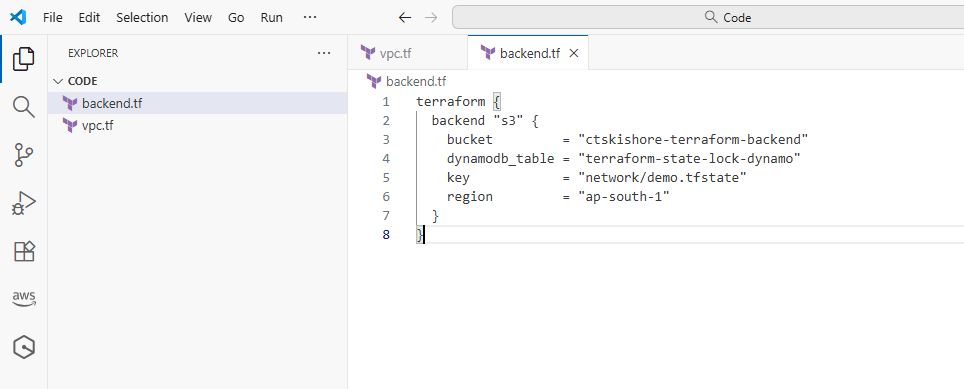

backend.tf

terraform {

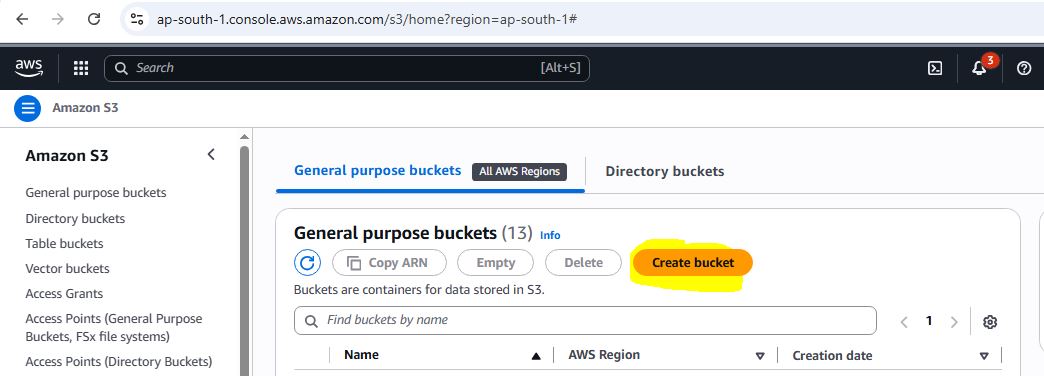

  backend "s3" {
    bucket         = "ctskishore-terraform-backend"

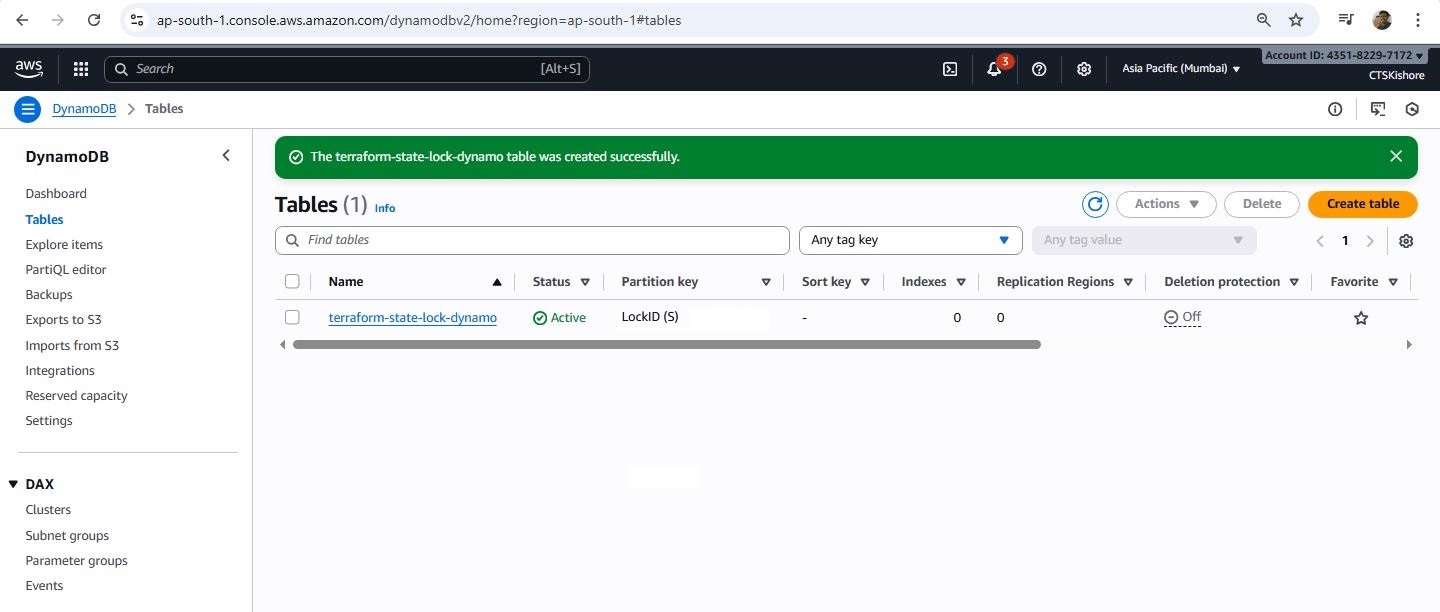

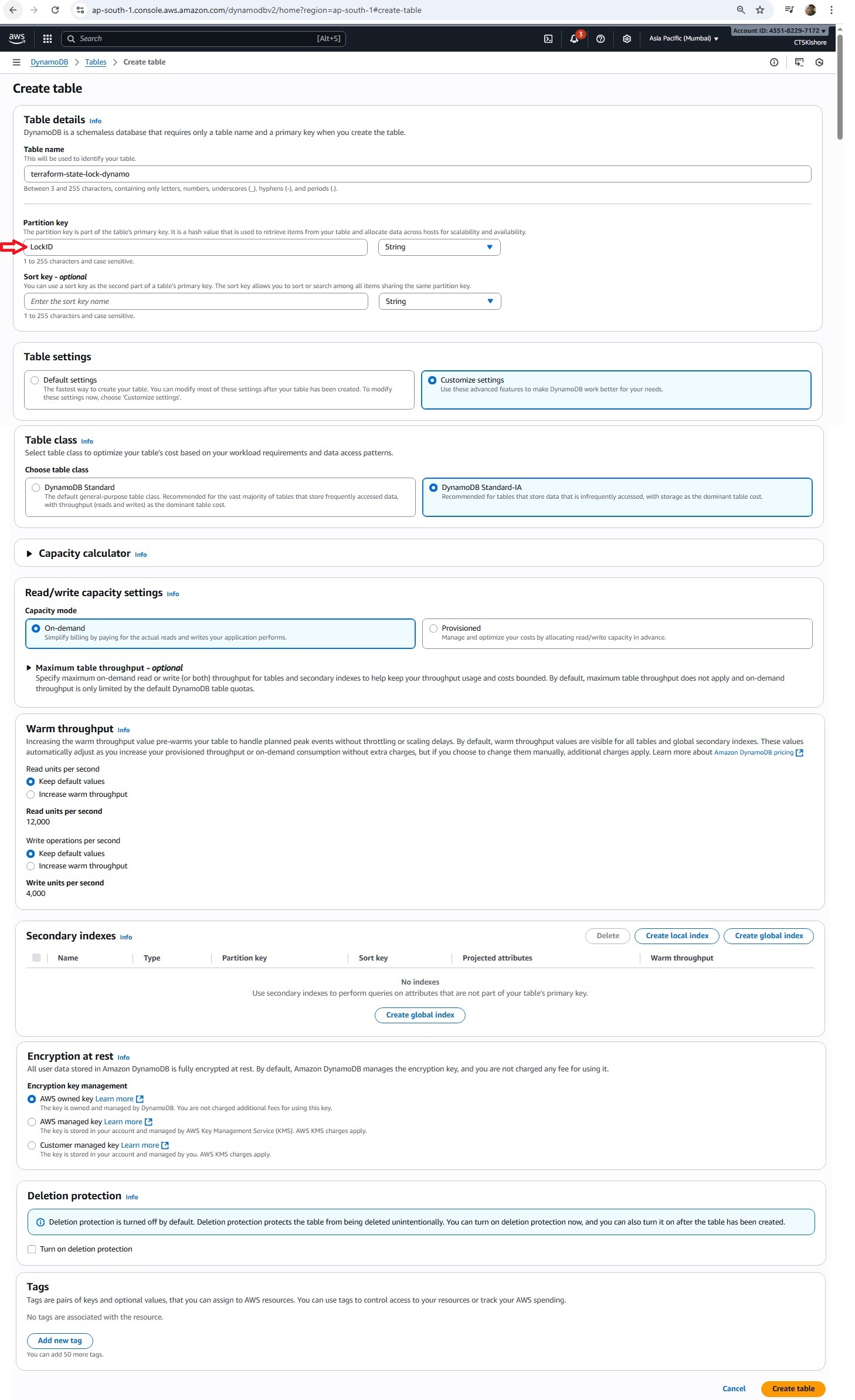

    dynamodb_table = "terraform-state-lock-dynamo"
    key            = "network/demo.tfstate"
    region         = "ap-south-1"
  }
}

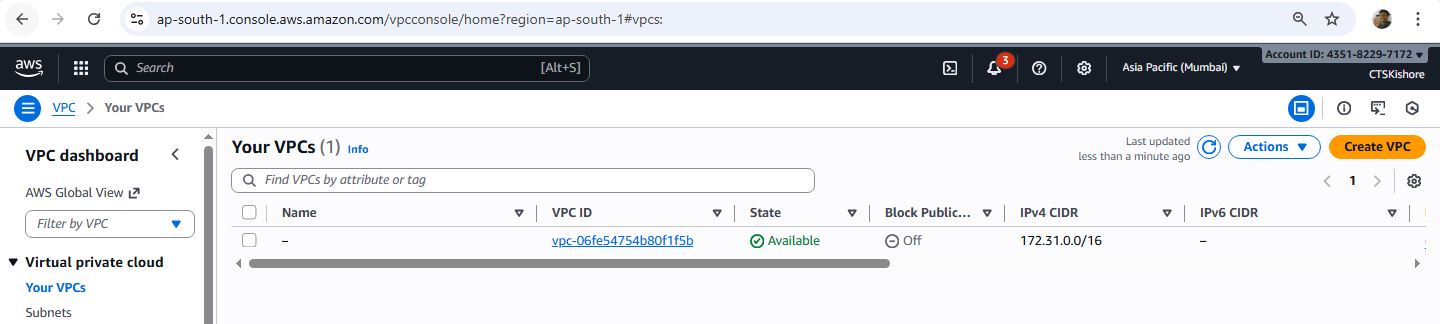

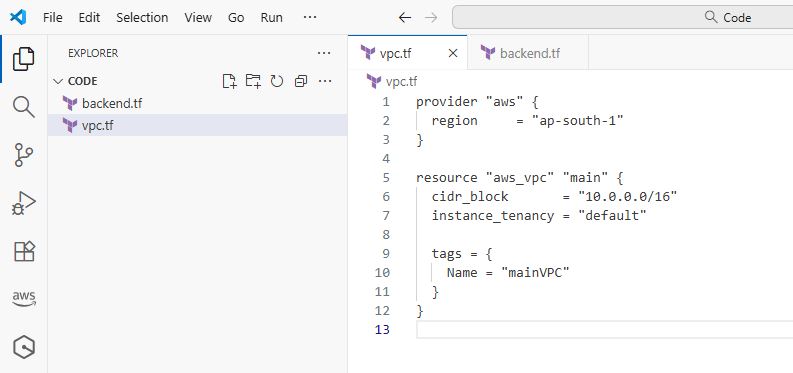

vpc.tf

provider "aws" {
  region     = "ap-south-1"
}

resource "aws_vpc" "main" {
  cidr_block       = "10.0.0.0/16"
  instance_tenancy = "default"

  tags = {
    Name = "mainVpc"
  }
}

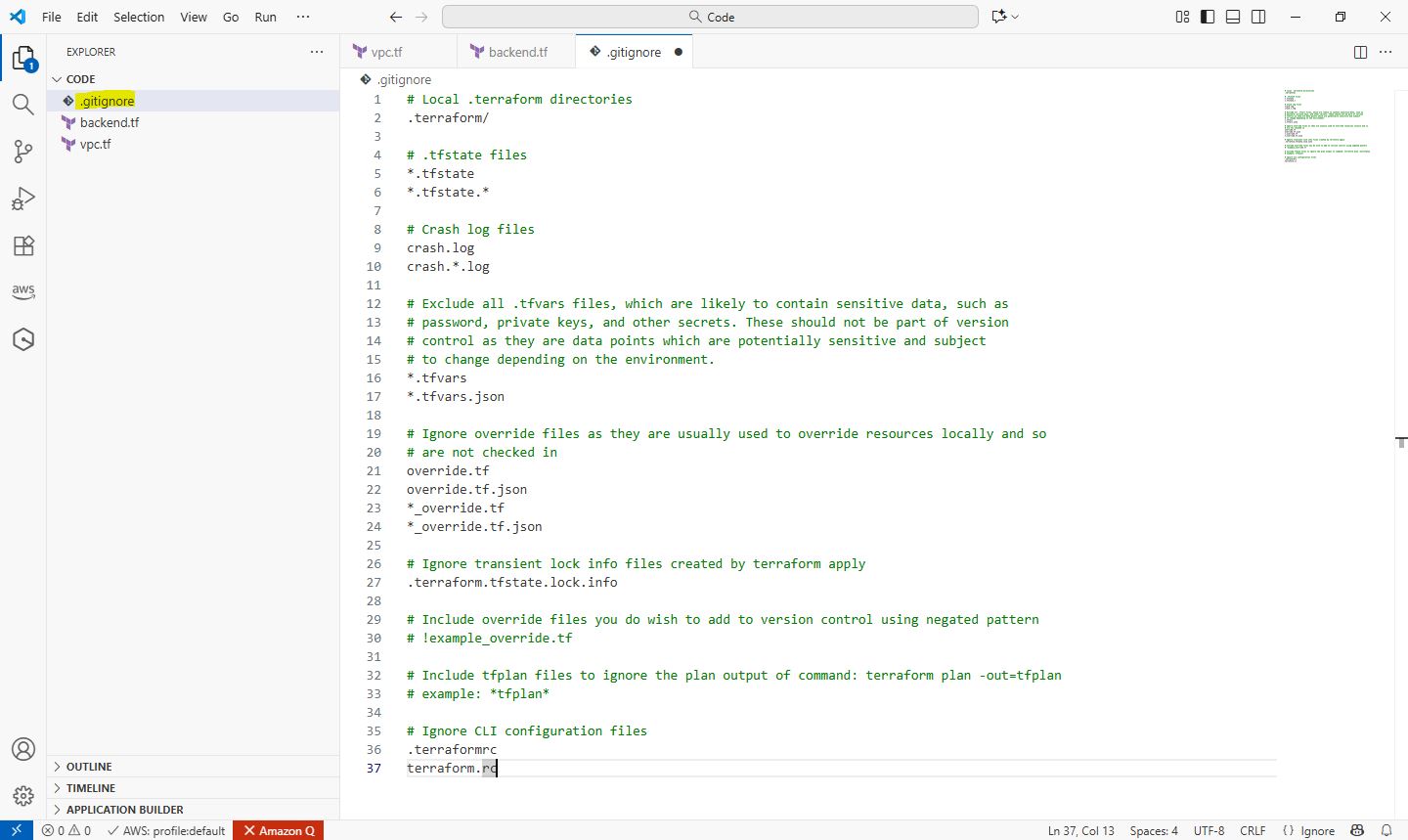

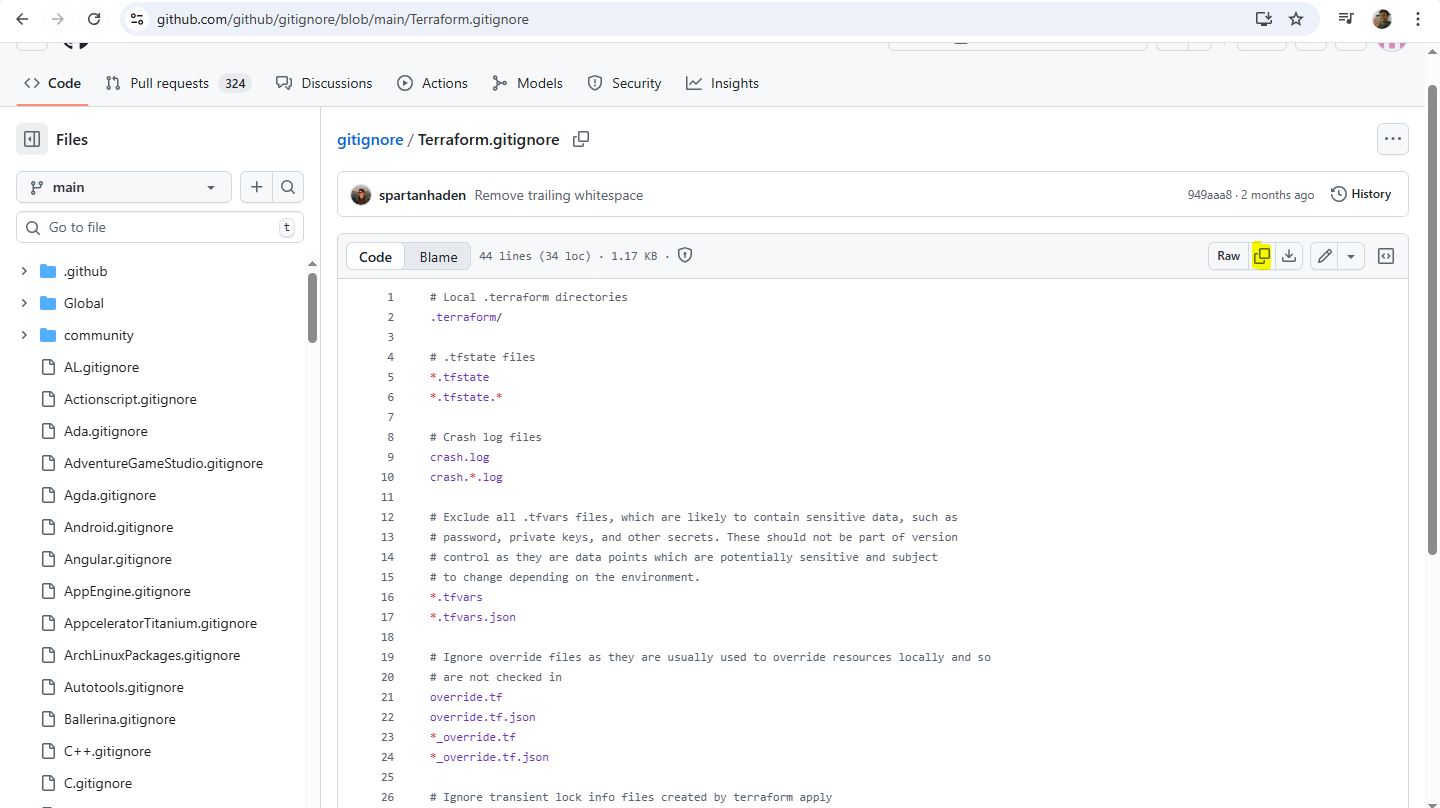

.gitignore

# Local .terraform directories
.terraform/

# .tfstate files
*.tfstate
*.tfstate.*

# Crash log files
crash.log
crash.*.log

# Exclude all .tfvars files, which are likely to contain sensitive data, such as
# password, private keys, and other secrets. These should not be part of version
# control as they are data points which are potentially sensitive and subject
# to change depending on the environment.
*.tfvars
*.tfvars.json

# Ignore override files as they are usually used to override resources locally and so
# are not checked in
override.tf
override.tf.json
*_override.tf
*_override.tf.json

# Ignore transient lock info files created by terraform apply
.terraform.tfstate.lock.info

# Include override files you do wish to add to version control using negated pattern
# !example_override.tf

# Include tfplan files to ignore the plan output of command: terraform plan -out=tfplan
# example: *tfplan*

# Ignore CLI configuration files
.terraformrc
terraform.rc

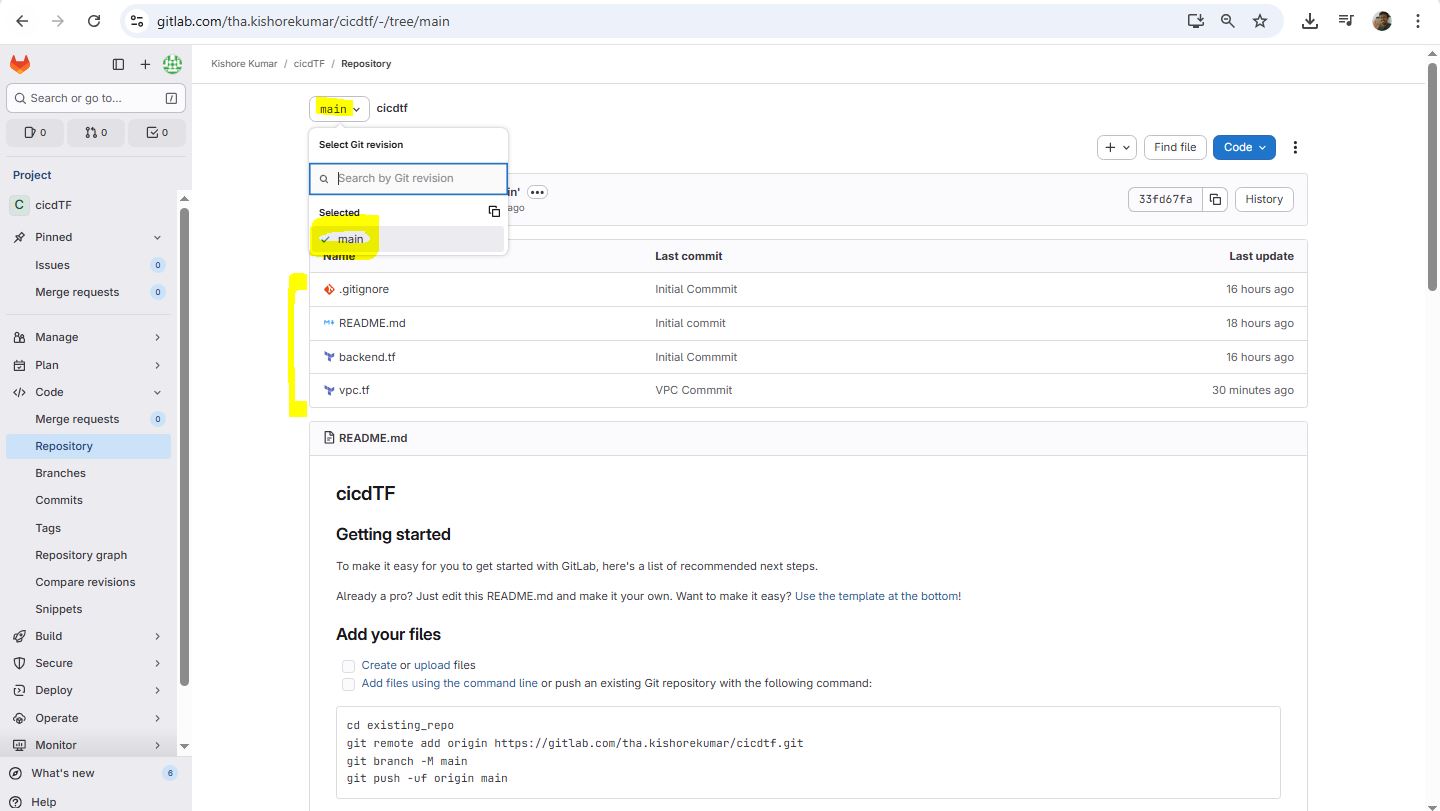

Deployment Images

Step 1:

Step 2:

Step 3:

Step 4:

Step 5:

Step 6:

Step 7:

Step 8:

Step 9:

Step 10:

Step 11:

Step 12:

Step 13:

Step 14:

Step 15:

Step 16:

Step 17:

Step 18:

Step 19:

Step 20:

Step 21:

Step 22:

Step 23:

Step 24:

Step 25:

Step 26:

Step 27:

Step 28:

Step 29:

Step 30:

Step 31:

Step 32:

Step 33:

Step 34:

Step 35:

Step 36:

Step 37:

Step 38:

Step 39:

Step 40:
